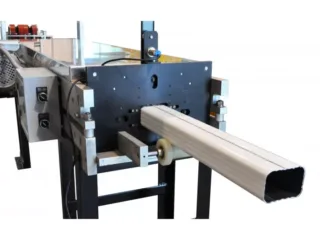

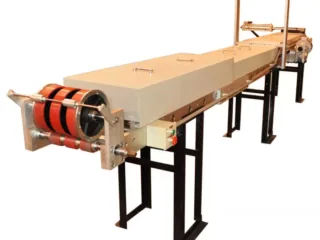

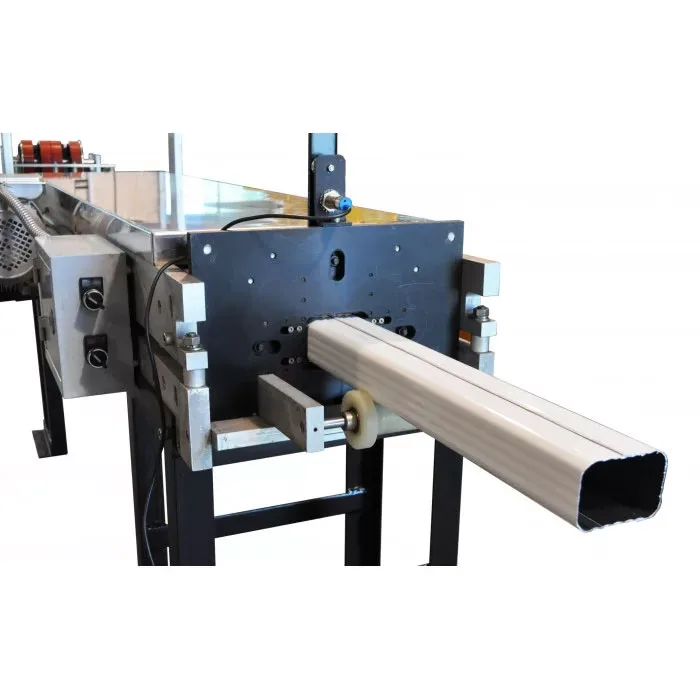

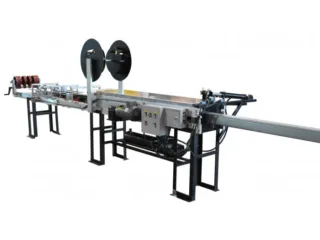

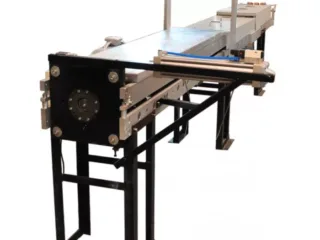

Commercial and Portable Downspout & Elbow Machines – starting at 34.500$
Pipe Size: 2”x 3”; 3” x 3”; 3”x 4” ,4″x4″, 4″x5″.

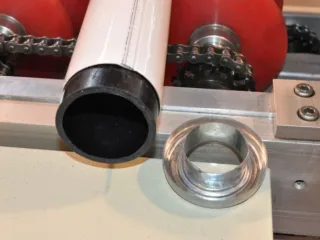

•3” Round •4” Round • CUSTOM Sizes
(Each machine does one size and configuration)
Speed:
•Standard 30 ft./min.
•Optional 45 or 60 ft./min. (aluminum)
Material:
• Aluminum .019 – .024 in.
• 26 ga. Grade 50 or grade A
• Copper 16 oz.
Warranty: 1 year limited parts warranty
Spools: One 15” I.D. spool included
Electrical:
•110 volt or 220 volt
•ON/OFF switch
•Forward/Reverse switch
•Entrance JOG button
Models:
•Portable or stationary
•Semi-automated: length control with limit switch
• Round or rectangular models
Drive System: Urethane top and bottom drive rollers
for smooth even, non-twisting drive
Frame: 1” x 5” Aluminum side blocks
Cutoff Mechanism: Hand operated Quadra-shear with built-in crimper or Cutoff saw (Round models)
Optional automated pneumatic activation.
Affordable Industrial Downspout machine.
Pipe Size: 5.25” x 3.5” (133mm x 90mm)
Speed:
•25- 33 feet per minute
•8 – 10 meters per minute
Material: .015” – .024” (0.4 – 0.6mm)
Shear: Post forming shear, Simens PLC Automatic Controller,
Decoiler: One decoiler with.spool included
Material Width: 17.75” wide coil (452mm)
Dimensions of Line: 55! x 4! x 4.5! high
Included in line:
• On top Decoiler
• Guiding Mechanism
• Roll Former
• Hydraulic shear
• PLC Controller
• Runout Table
