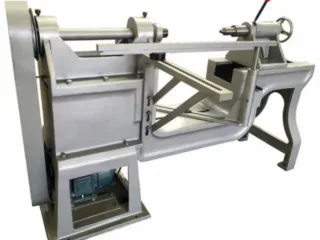

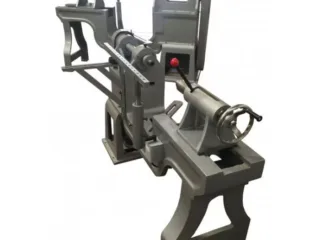

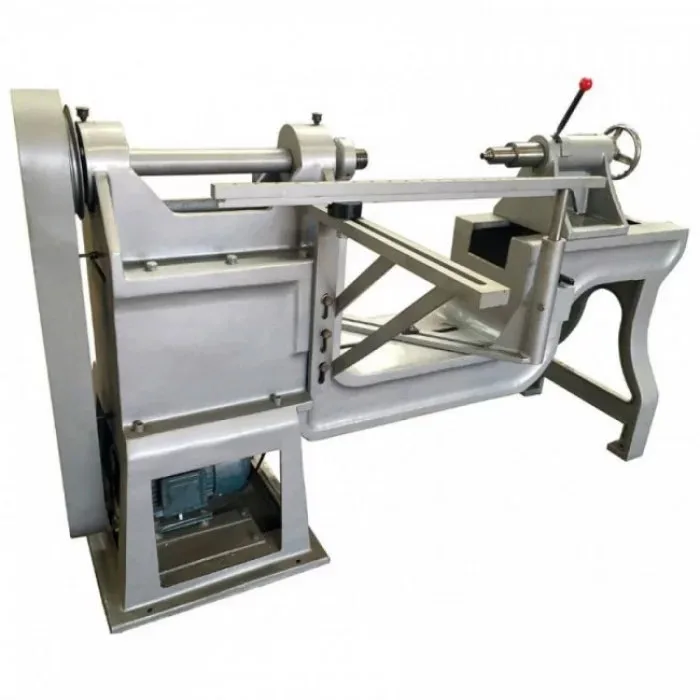

Model D47 is a manual metal spinning lathe.
This lathe is designed for manual spinning. Strong and heavy base frame made of cast iron. Machine has a powerful 5kWt motor drive with two speed belt gear. Max blank diameter up to 47inches (4 feet or 1200mm). Special design of the back tail allows fast installation of the blank and removal of the finished item from the mold. On this lathe you can spoon any kind of metal: aluminum, brass, copper, silver, steel, stainless steel and spoon up to 13 Gauge steel (max thickness up to 0.1 inch or 2.5mm for the low carbon steel). It’s possible to use simple and crank spinning tools depending on blank strength or personal preferences. Standard warranty one year.
Extended three years warranty for only 499$.
Main tech parameters:
Max blank diameter up to 47 inches (4 feet / 1200mm)
Blank material – aluminum, brass, copper, silver, steel, stainless steel.
Max blank thickness up to 0.1 inch or 2.5mm for the low carbon steel (13 Gauge).
Main motor power 5.5 kWt.
Default main spindle thread is 2.25″ x 4 threads per inch, Right
Weight of the machine – 2600 lbs / 1180kg.
Available spinning tools.
As lubrication you can use soap (working with aluminum), wax, oil or spoon without lubrication using tools with rollers.
Samples of the final products:
Live center (optional)

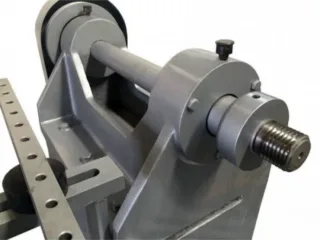

Main shaft, back plate thread adapter (optional)

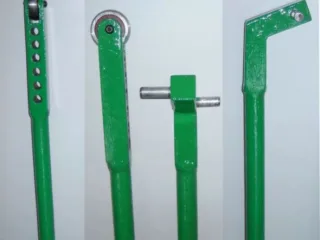

Available Spinning Tools:
Scissors tool set with two rollers.
Handles 3′ long, with roller holder 4′
material Cr12 MoV 60+ HRC tool steel.
Each roller has two Tapered Roller Bearings.
Both spinning rollers diameter 4.725″
One roller work radius – 0.06″
Second roller work radius – 0.24″
