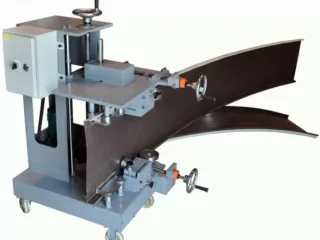

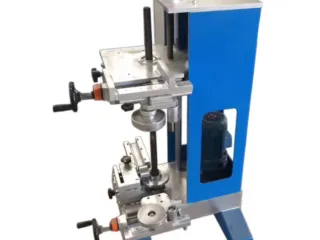

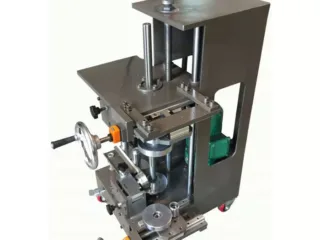

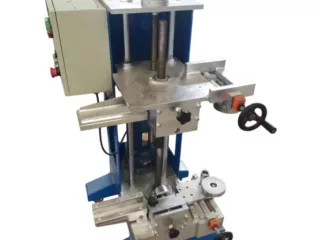

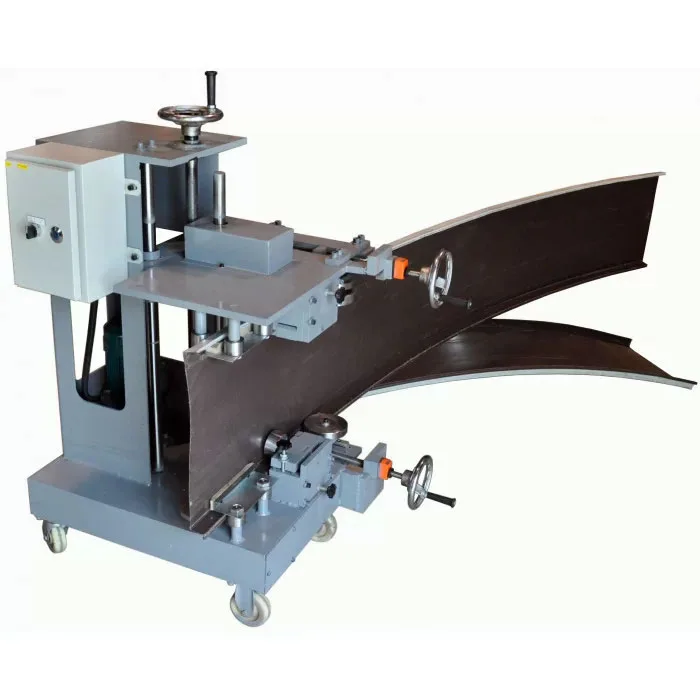

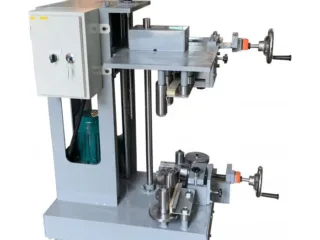

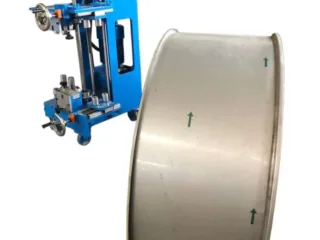

Standing seam roof panel curving machine was developed by our campaign specialists
Designed for conсave and convex curving of the roof panels with mechanical seam 1″ or 1.5″.
Main Tech Parameters:
Size: 20″ x 24″ x 44″
Weight: 320 lb
Motor Power: 2 hp
Voltage: 230V/60HZ/3PH (120v single phase motor optional);
Working Speed: up to 20 feet/min
Thickness range: 22-24 gauge
Panel Width range: 8 1/2 – 21″
Min. Curved Convex Radius of Al: 7 feet
Min. Curved Concave Radius of Al: 20 feet
Min. Curved Convex Radius of Steel: 10 feet
Min. Curved Concave Radius of Steel: 23 feet
