Dimos dipro 4600
$10,500
Used
Member since Jan 2025
Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.
Details
- Condition
- Used
- Listed
- Jan 29, 2025
- Updated
- Jan 29, 2025
Description

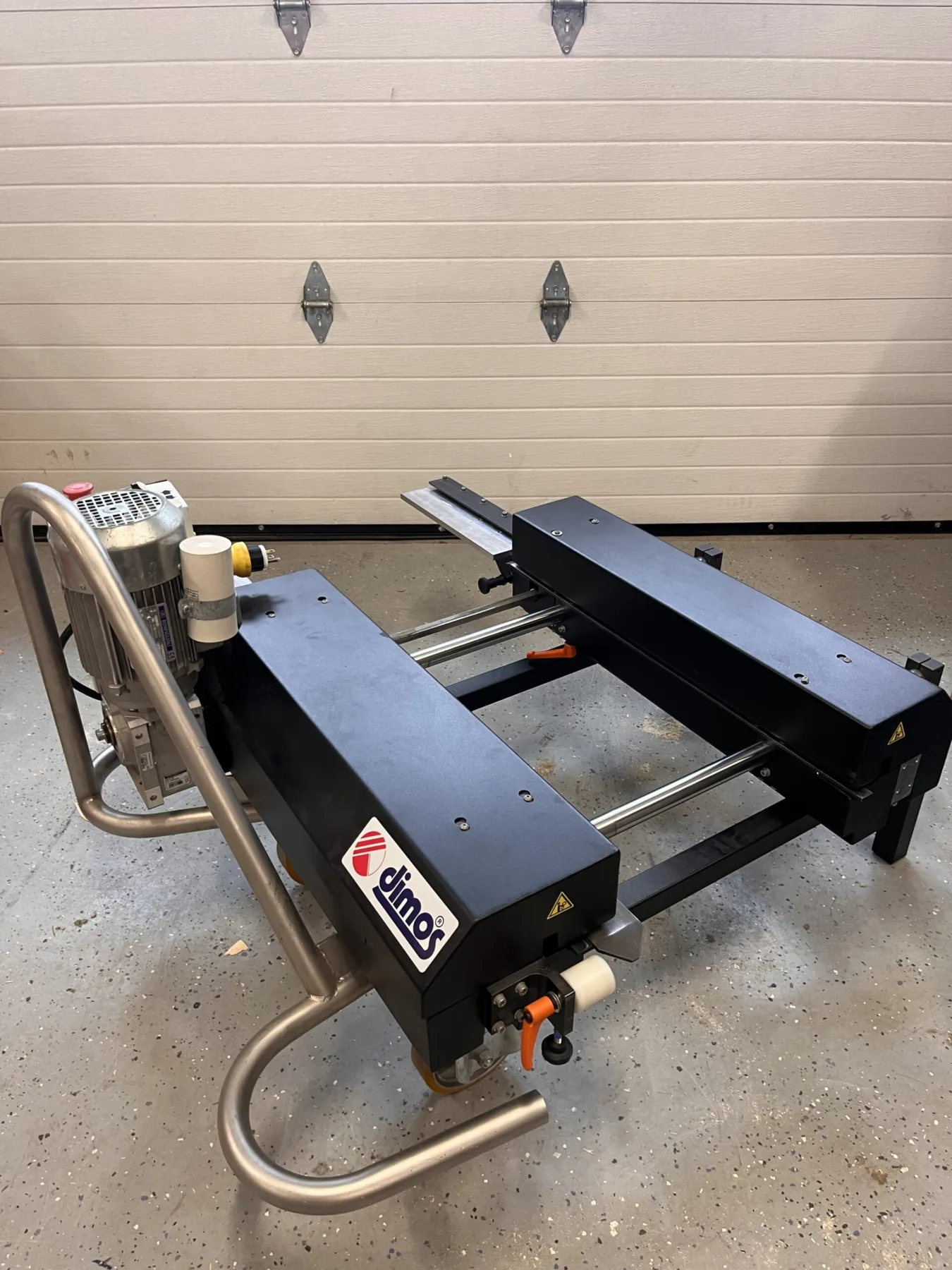

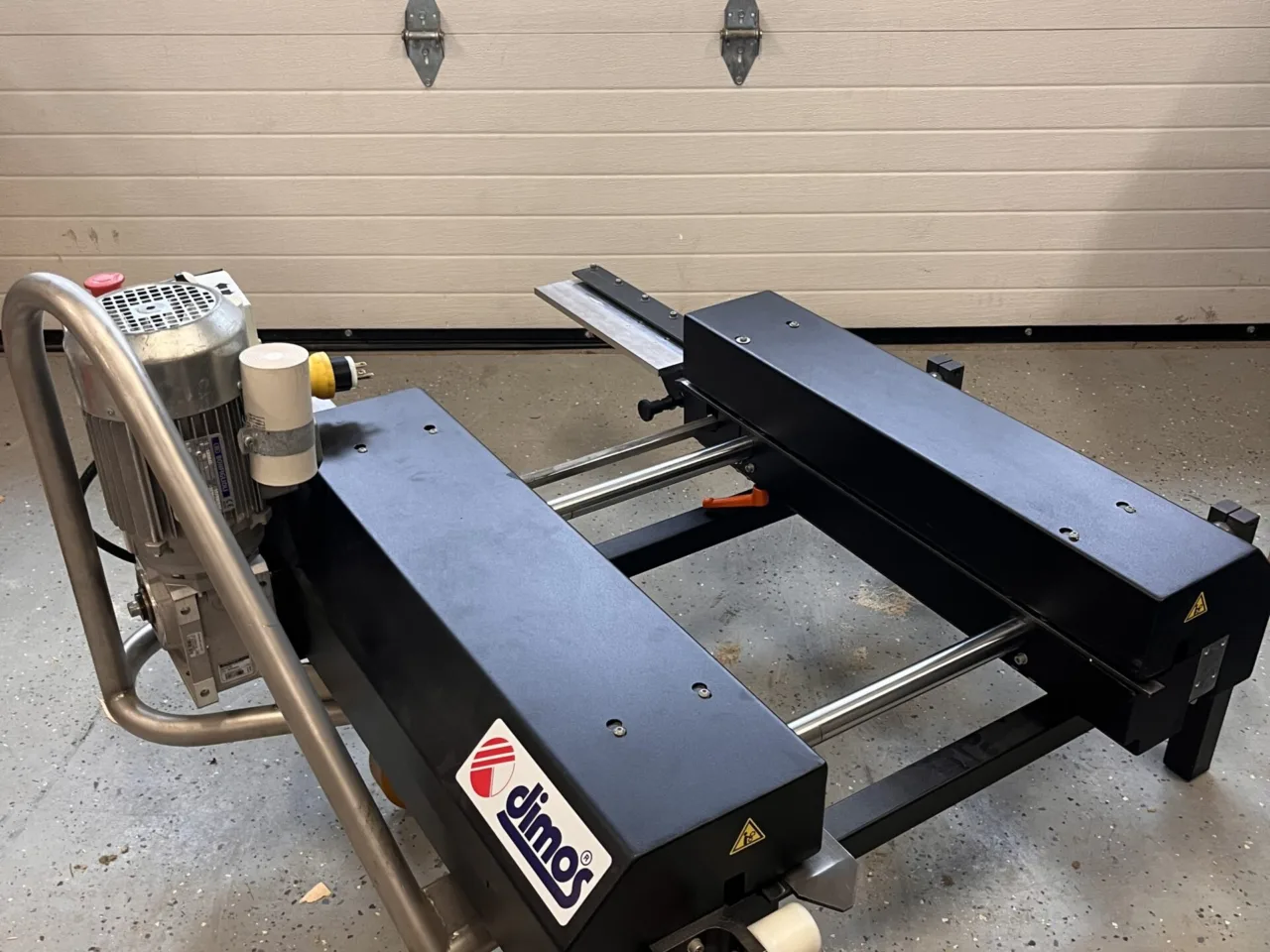

Dimos dipro 4600 – standing seam panel former. Forms 1” mechanical lock panel, easily portable and stowable. Ideal for smaller shops and job site use.
Specifications
| Power | Electric |
|---|---|
| Machine | Dimos DIPRO P4600 standing seam profiling machine |
| Seam | 1 in mechanical lock (per seller) |
| Strip width | 230 to 700 mm (9 to 27.5 in) in one pass |
| Minimum strip length | 800 mm (31.5 in) |
| Maximum thickness | steel 0.6 mm, stainless 0.5 mm, aluminum and zinc 0.8 mm, copper 0.6 mm |
| Speed | 10 m/min (33 ft/min) |
| Motor | 0.75 kW (1 HP), single phase, built in 110 V and 220 V versions |
| Forming stations | 5 |
| Machine dimensions | 1.30 m L x 0.92 m W x 0.74 m H (51 x 36 x 29 in) |
| Machine weight | 160 kg (353 lbs) |
| Please note | Published figures for this model, not measured on this machine. Confirm details with the seller. |
