StanGroup Double Standing seam roof panel rollforming machine SS4E-15
Double Standing seam roof panel rollforming machine SS4E-15
New UM-4445 Listed October 14, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | SS4E-15 |
| Equipment type | Roll Formers |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4445 |
Description
What is roll forming machine used for?
A roll forming machine is a specialized piece of equipment used in the metalworking industry to shape continuous metal sheets or strips into specific profiles or shapes. It is a highly efficient and cost-effective manufacturing process for producing long lengths of uniform cross-sections from coiled metal stock.

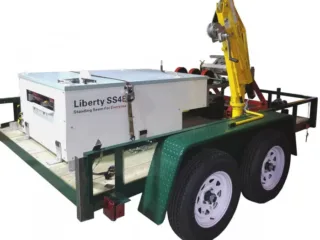

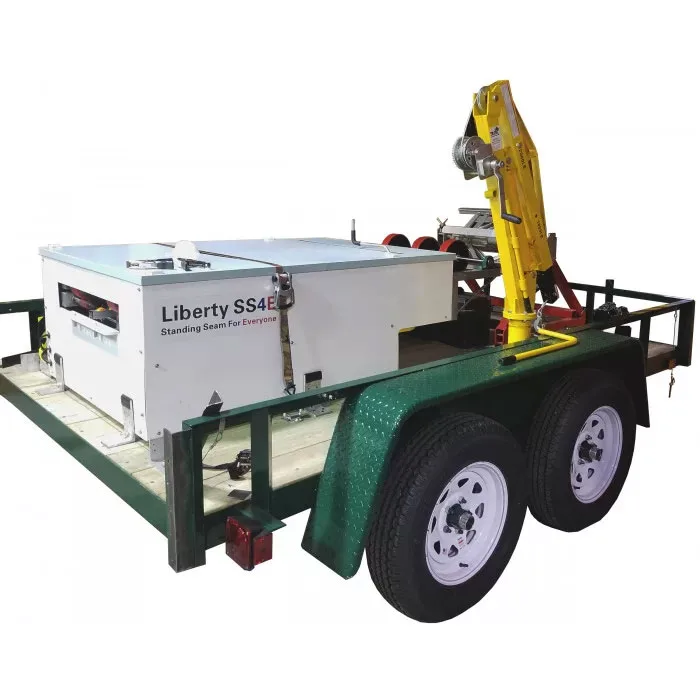

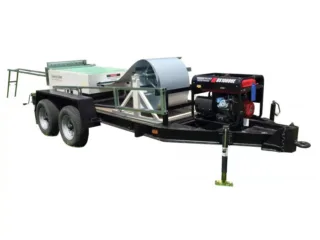

Portable Standing seam roof panel roll forming machine SS4E-15 for 1″ or 1.5″ double standing seam profiles.
Indispensable in the production of metal roof and wall panels, including standing seam profiles.A metal roofing machine may include different settings and configurations, depending on this, have a different cost.
Metal roofing machine specifications:
• Length: 5′ 4″ (1.6m)
• Width: 3′ 5″ (1.1m)
• Height: 1′ 9″ (0.5m)
• Weight 1000 lbs. (455 kg)
• Speed: 30 ft/min (9m/min) Approx.
• Drive: Polyurethane and lower steel forming Rollers
• Shear: Manually Powered, Entrance end slitter
• Coil Width: 15” to 28″ (380mm to 711mm)
• Materials Formed
• Steel 30 gauge to 24 gauge (.3mm to .6mm)
• (painted, galvanized, aluminized)
• Aluminum .019″ to .032″ (.5mm to 08mm)
• Copper 16 oz. to 20 oz. 3/4 Hard
• (.5mm to .7mm)
STANDARD FEATURES
• Polyurethane and Bottom Forming Drive Rollers
• Hard Chrome Steel Forming Roller System
• Easy to operate Entrance End Manual slitter cutoff
• Portable Dongle for Ease of Operation
• Width Adjusted with simple crank
• Wireless Remote Control
• Length Control with Limit Switch
• Clip Relief Roller Set included
• Double Bead Roller Set
• 1.5 HP Electric Motor
• Welded Tubular Steel Frame
• One Year Limited Parts Warranty
What to check on a used roll former
- Confirm which profiles, rib rollers and shear dies are included, then run a test panel in each one.
- Check the polyurethane drive rollers for cuts, flat spots and any separation from the hub.
- Look for scoring or rust on the forming rollers and run 24-gauge steel to check for oil canning.
- Inspect the hydraulic power pack for leaks, read the hour meter and check the oil.
- Cycle the shear and controller and measure length accuracy over a 20-foot panel.
- Walk the trailer: axles, tires, brakes, lights, VIN plate and a clean title.
