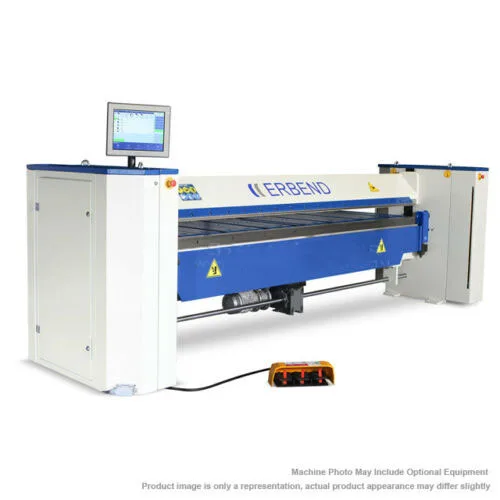

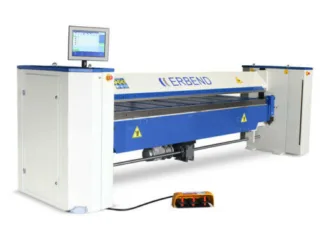

ERBEND 10 ft x 16 ga. CNC Folder MFC 3215
Brand
Erbend
Erbend
Model
MFC
MFC
Category
CNC Folder
CNC Folder
Condition
Special order
Special order
Power
Electric
Electric
Price
Call for price
Call for price
Specification
| Max sheet length | 10.49 ft (126") |
|---|---|
| Max thickness capacity full length | 16g Steel |
| Mild Sheet | 16 ga |
| Stainless | 20 ga |
| Aluminum | 14 ga (2mm) |
| Drive Power (Clamping Beam Z axis) | 1.1 HP |

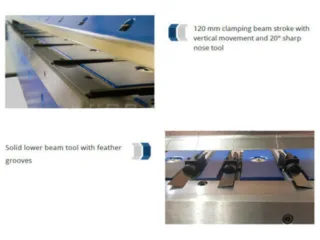

| Operating Height (Clamping Beam Z axis) | 4.72" (120mm) |
| Drive Power (Folding Beam Y axis) | 2.2 HP |
| Folding Speed (Folding Beam Y axis) | 75°/sec |
| Drive Power (Folding Beam A axis) | 1.1 HP |

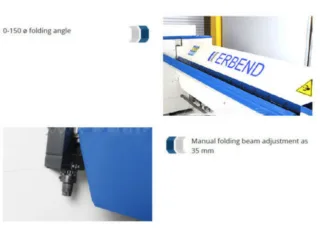

| Adjustment Height (Folding Beam A axis) | 1.38" (35 |

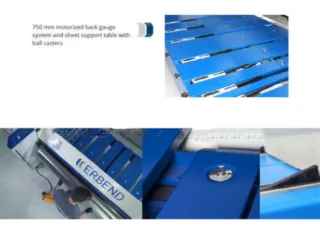

| Drive Power (Backgauge System X axis) | 0.4 HP |
| Min/Max Gauging (Backgauge System X axis) | 0.4 HP |
| Electrics | 480V, 3-Phase only |
| Frequency | 60Hz |
| Rated Current | 7,5A |
| Rated Power | 3,93 kW |
| Dimensions | 88" x 175" x 73" (W x L x H) |
| Weight | 6,950 lbs. |
