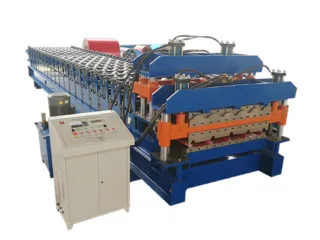

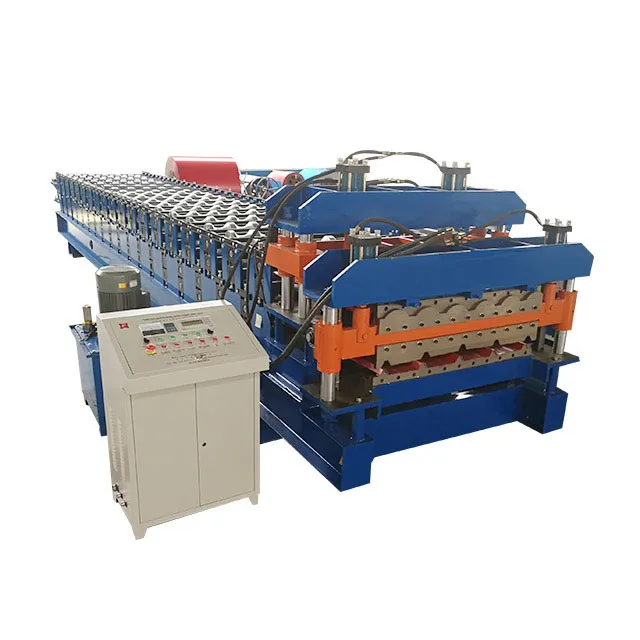

Huachen Glazed Tile Double Deck Roll Forming Machine, 1200 mm Coil Width
Get a quote
Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.
New
UMRM Trusted
Member since Oct 2021
Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.
Details
- Condition
- New
- Brand
- Huachen
- Model
- HC38/32
- Type
- Roll Formers
- Listed
- Nov 21, 2023
- Updated
- Nov 22, 2026
Description
Antique glazed tiles have the characteristics of beautiful appearance.
It can be widely used in garden-style factories, tourist scenic areas, pavilions, villas, exhibition halls, resorts and other outdoor decorations.
| Suitable Material | GI/PPGI/Aluminum |
| Strength of Adaptive Material | Q235-300 |
| Thickness of Raw Material | 0.3-0.6mm |
| Width of The Raw Material | 1200mm |
| Production Speed | Upper Lyaer: 0-2m/min
Down Layer: 0-15m/min |
| Total Power | 11KW |
Components
| Decoiler |
| Roll Forming System |
| Pressing System |
| Cutting System |
| Control Cabinet |
| Output Table |
One deck of this machine presses glazed tile sheets and the other forms a second roofing profile, so a single line covers decorative tile roofs and everyday panel work. It is fed with 1200 mm (47.2 in) coil in galvanized steel, prepainted steel or aluminum from 0.3 to 0.6 mm thick. Upper deck speed is 0 to 2 m/min (6.6 ft/min), lower deck 0 to 15 m/min (49 ft/min), and total power is 11 kW.
Specifications
| Power | Electric |
|---|---|
| Material | GI, PPGI, aluminum |
| Material strength | Q235-300 |
| Material thickness | 0.3-0.6 mm (0.012-0.024 in) |
| Coil width | 1200 mm (47.2 in) |
| Forming speed | Upper layer 0-2 m/min (0-6.6 ft/min); lower layer 0-15 m/min (0-49 ft/min) |
| Total power | 11KW |
| Line includes | Decoiler, roll former, press, cutter, control cabinet, output table |
| Shaft diameter | Φ70 mm (2.76 in) (typical) |
| Power supply | 380V 50Hz 3-phase, can be customized (typical) |
| Decoiler | Manual, 5T, 470-530 mm inner diameter (typical) |
| Drive | Chain (typical) |
| Roller material | 45# steel, quenched and plated (typical) |
| Please note | Model details and figures come from the maker's or dealer's published page for this machine and from the listing. They were not measured on this unit. Confirm details with the seller. Lines marked typical are the maker's standard figures for this type of machine. |
