StanGroup Industrial metal tile forming machine
Industrial metal tile forming machine
New UM-4450 Listed October 14, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | N/A |
| Equipment type | Roll Formers |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4450 |
Description

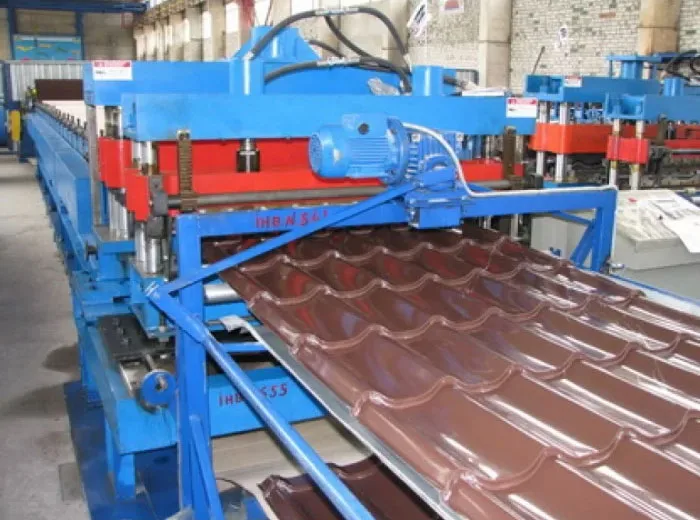

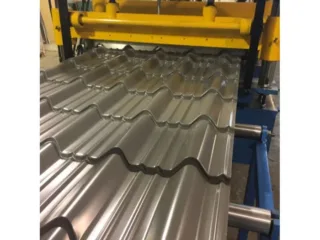

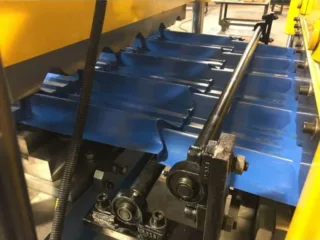

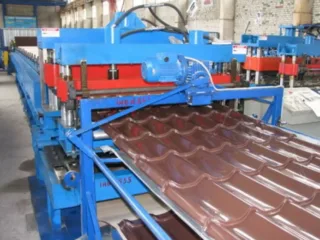

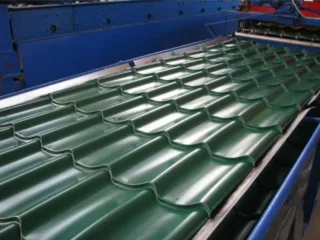

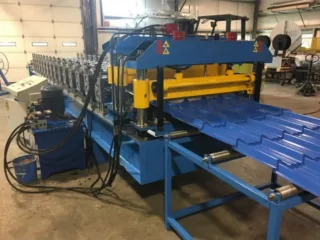

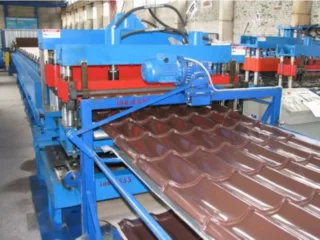

Metal Roof Tile Profile produced of PPGI (prepainted galvanised iron), with special set of equipment. PPGI supplies in coils (avarage weight 5-7mt) therefore to start manufacturing process you’ll need hold and uncoil it with decoiler (coil reel). Some coils have not perfect round shape and in uncoiling process it may feed with hitch and it could affect on tolerance of punching anc cutting process. To neytralise this affect we use motorised decoilers for our machines. Uncoiled metal goes to roll froming section thru the feeding device. The roll forming section forms wayve corrugated metal sheet. At the end of the rollforming section goes hydraulik punching press that makes tiles shape. After the punching press goes hydraulik cutting. We can offer classical streight or modern 3D cutting blades. At the very end of the line goes run out table to stack complete roof tile sheets. PLC system automatically controls all the operation process. Assembled machine size 18 x 1,7 x 1,5m. Price varies with profile type, production speed, and machine parts.
Main Technical Specification:
Material thickness: 22-28 Gauge (0.4-0.8mm)
Forming speed: up to 5 m/min
Main motor power: 5.5kw & Hydraulic power: 7.5kw

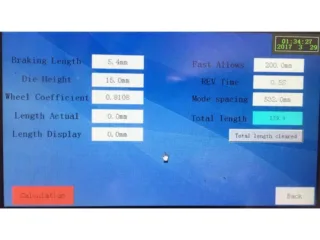

Control system: PLC (Panasonic)
What to check on a used roll former
- Confirm which profiles, rib rollers and shear dies are included, then run a test panel in each one.
- Check the polyurethane drive rollers for cuts, flat spots and any separation from the hub.
- Look for scoring or rust on the forming rollers and run 24-gauge steel to check for oil canning.
- Inspect the hydraulic power pack for leaks, read the hour meter and check the oil.
- Cycle the shear and controller and measure length accuracy over a 20-foot panel.
- Walk the trailer: axles, tires, brakes, lights, VIN plate and a clean title.
