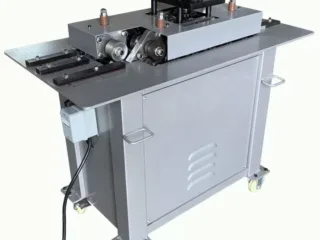

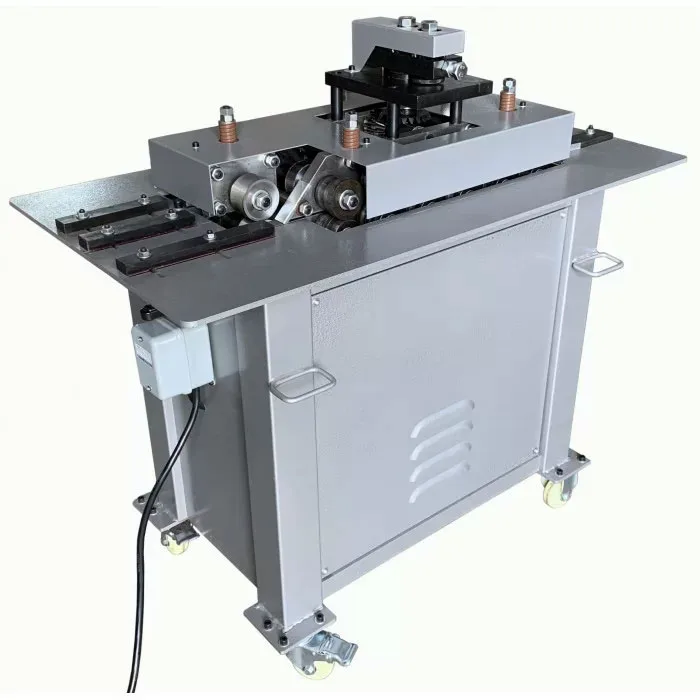

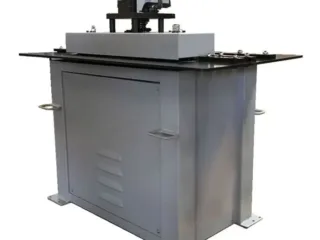

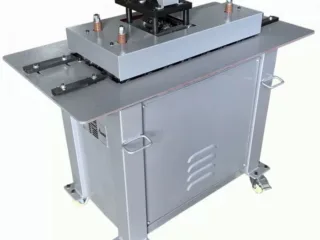

StanGroup Pittsburgh Lock Forming Machine
Pittsburgh Lock Forming Machine
New UM-4405 Listed October 9, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | N/A |
| Equipment type | Spiral Tube Formers |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4405 |
Description
1/2″ or 3/8″ Pittsburgh (optional) lock-forming machine designed to make 6 types of heavy gauge locks 22 – 26 Gauge low carbon steel. Pittsburgh lock. Standing Seam lock. Single Hem L. Double Hem Z. Standing seam Locking pin C. Radial single hem L.
Machine designed for industrial manufacture of the HVAC systems, with high efficiency, low noise and good performance.

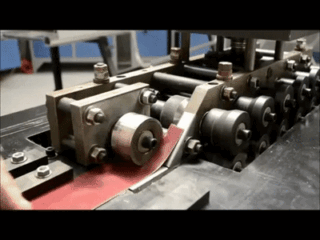

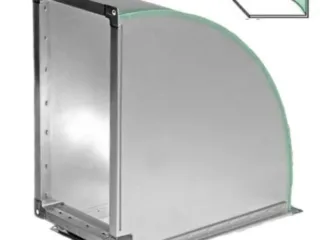

Standard set of rolling tools allows to form 6th main locks to connect square ducts, round ducts, square elbows,linear connections via C profile.
Machine designed for industrial manufacture of the HVAC systems, with high efficiency, low noise and good performance.
Standard set of rolling tools allows to form 6th main locks to connect square ducts, round ducts, square elbows,linear connections via C profile.
| Technical parameters: | |
| Roll-forming speed, feet per min | 36 |

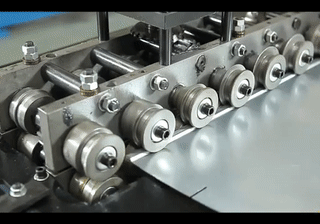

| Quantity of the forming roller pairs | 7 + 7 + 6 + 1 |
| Capacity | 22-26 Gauge |
| Main motor power | 2 Hp 110v / 60Hz/ single phase. |
| Size LхWхH | 44″ х 24″ h43″ |
| weight | 600 lbs |
+ Hemming flange – optional.
Radial single hem L

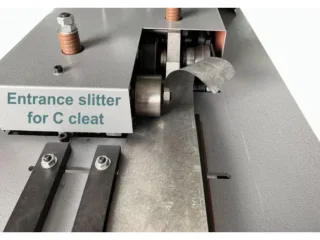

Locking pin C
Pittsburgh lock. Standing Seam lock. Single Hem L.
Double Hem Z. Standing seam Locking pin C.
Main advantages of our Pittsburgh Lock Forming Machine

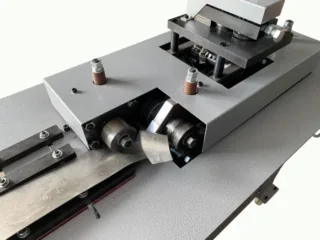

- Heat treated roller tools;

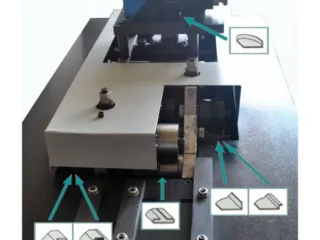

- Machine forms 6 different lock shapes without complex adjustment or rollers interchange;
- Compact size and mobility;
- High efficiency;
- Warranty 2 years;
Additionally to our Pittsburgh Lock Forming Machine you can order special Hemming flange rollers, to form hemming flange up to 0.4″ wide.
Set of hemming flange rollers price $550
What to check on a used spiral tube former
- Confirm the diameter range and which forming heads or tooling sets are included.
- Run a test tube and inspect the lock seam for tightness and the cut end for squareness.
- Check the drive, seam rollers and cut-off for wear and verify voltage and phase.
