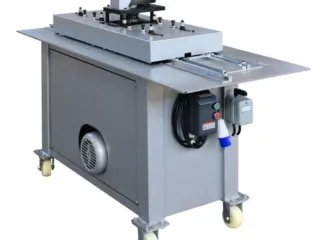

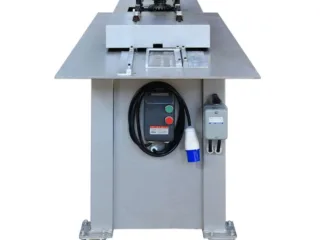

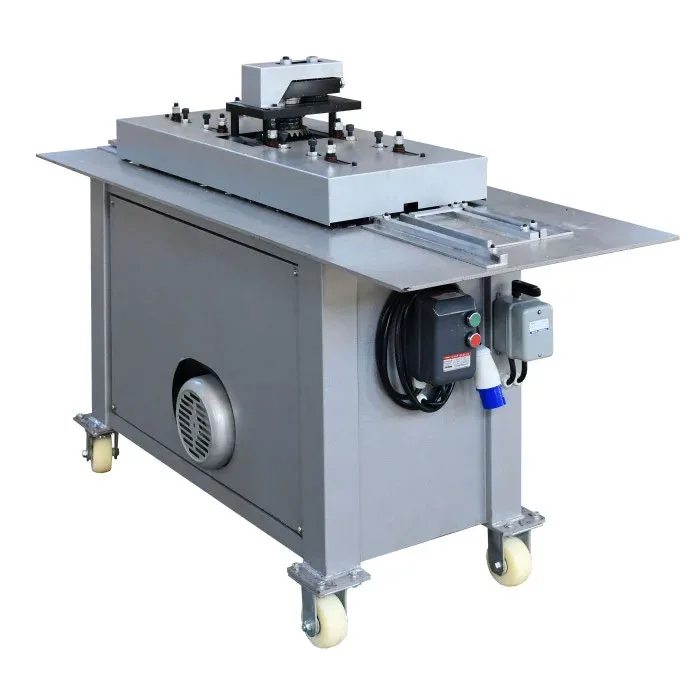

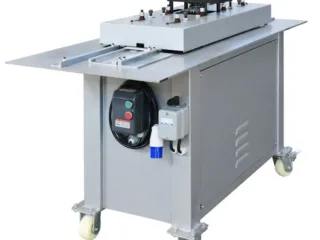

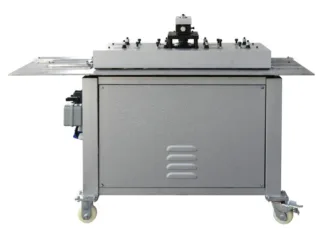

Pittsburgh S-cleat C-drive machine plus Flanger attachment

Get a quote

Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.

New

UMRM Trusted

Member since Oct 2021

Message the seller

Join free to send a message

Already a member? Log in

Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.

Safety tips · Inspection checklist

Details

Condition
New
Model
N/A
Listed
Oct 11, 2024
Updated
Oct 11, 2024

Description

The lock seam machine as well as s and drive cleat machine are used to create proper connections of ducts in a line. But the former connects ducts with a single or double lock, while the latter connects the ends of ducts with unformed and formed edges. We suggest combining these features and purchase only one unit for both purposes. It performs operations in a smooth manner being available at a reasonable cost. You can have a look at this machine on our website and contact us to discuss the options and buying terms.

Technical parameters:
Roll-forming speed, feet per min 36*

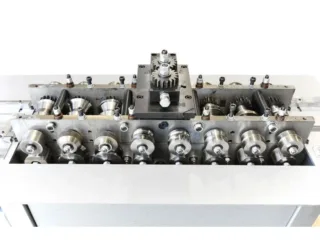

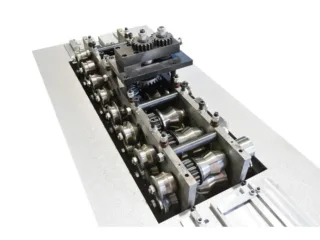

Quantity of the forming roller pairs 8 pairs in 3 row
Material gauge range 18-26 gauge
Power requirements 110v 2,2 kW (3 Hp) 60Hz 20A.
Size LхWхH L 55″ х W 24″ х H 46″
weight 950 lbs



Peculiarities of s cleat and drive cleat locking pin Pittsburgh and Seam Lock Forming Machine
Coming with 2 years warranty the machine can boast of high efficiency being quite compact, emitting low noise and guaranteeing nice performance. Its small dimensions allow easy mobility. This machinewill be appreciated by manufacturers of the HVAC systems. It is easy to operate and does not require a high maintenance. The parts are durable.

Four in one

S-cleat profile should be used with a drive cleat profile for joining of overlapping edges in duct connections. In order to perform this option, the metal strip is required.

C-locking pin / Drive cleat. Here it is easy to process a material of different width due to a particular entrance slitter. As a result, you get a perfect final product for s and drive cleat connections.

Pittsburgh lock. It consists of a couple of profiles creating a standard flange lock which is requested when ducts of a square shape are produced.

Seam lock. This is a standard lock which is requested when ducts of a round shape are produced, for instance, with use of round ductwork machinery.

Pittsburgh rollers. They are requested when roofing standing seam panels are made. Thus, the specified unit can be used together with a standing seam metal roof forming machine.

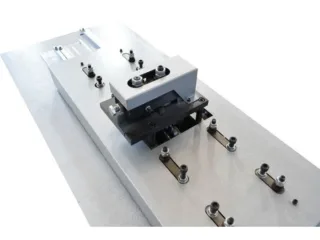

Flanger on top of the machine forms a male flange to fit Pittsburgh seam over the curved blanks for the elbow sides.

The machine comes with all four options allowing you to produce several items for HVAC and similar systems at a time. Contact us to find out more about its advantages!

Specifications

PowerElectric
