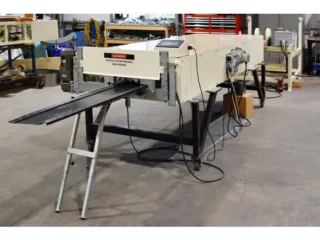

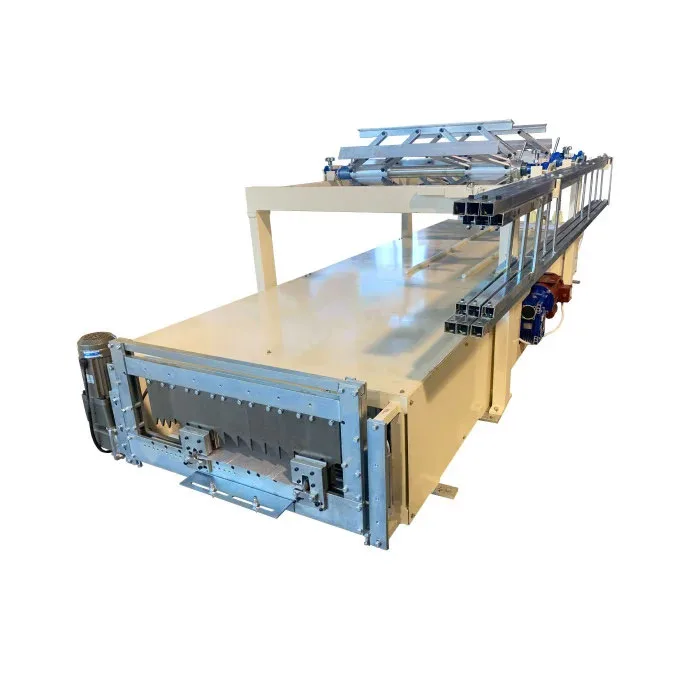

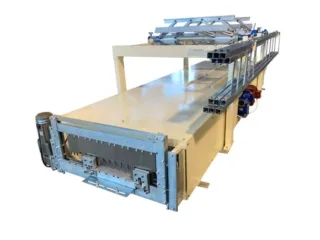

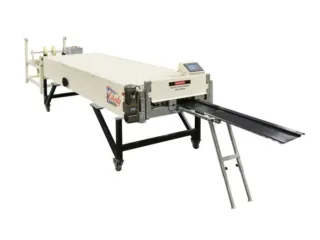

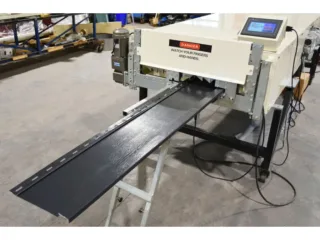

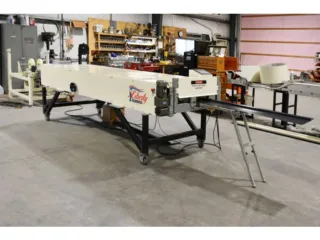

Roll-Forming Roofing Machine SS4E – PRO

Get a quote

Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.

New

UMRM Trusted

Member since Oct 2021

Message the seller

Join free to send a message

Already a member? Log in

Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.

Safety tips · Inspection checklist

Details

Condition
New
Model
SS4E - PRO
Listed
Oct 14, 2024
Updated
Oct 14, 2024

Description

It features our exit end adjustable shear, panels from 12 – 24” wide, single phase 110v 1.5 hp AC motor (220v 3kWt single and 3 phase with Variable speed control, Hydraulic drive with Gas-Hydraulic Honda motor is available as alternative drive options), and optional overhead reed rack, and optional expandable arbor reels.

Features:

  • 6 Urethane drive rollers
  • Free-floating chrome plated forming rollers mounted
  • Two sets of bead rollers convertible into two striation ribs included
  • Easy adjustable width of panel from 12” – 24”* (actual width range for each panel depends on size and height of the seam)
  • Includes clip relief rollers
  • Easy change to different various profiles (custom design available)
  • Manual Exit end shear (electrical and hydraulic drive optional)
  • Material width* 15” to 28” (actual material width range depends on forming rollers installed)
  • Limit switch for length control (automated length and batch controller with 10″ tough screen in optional)
  • Liberty wireless control For/Rev Start/Stop
  • Production speed 25 to 70 fpm (depends on chosen drive type and power)



Profile types:

download profile types in pdf

This advanced machine comes with the any available profile up to your choice.

Tooling rollers are interchangeable so you can order extra tool set or few.



Optional:

  • Dual overhead reel rack
  • Expandable arbor reel
  • Single expandable arbor reel stand
  • Heavy duty 18 oz. Tarpaulin cover



Automatic shear (hydraulic shear drive is optional)

Automated PLC control with 10″ touch screen.

Machine can be mounted on your or a new trailer.

Specifications

PowerElectric
