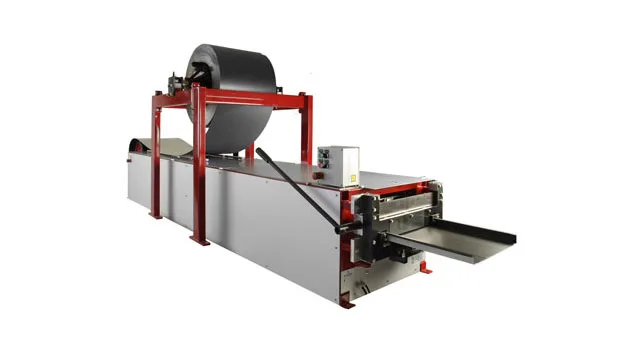

Englert Roof Panel Machine FP1300/16
Roof Panel Machine FP1300/16
Sold UM-4310 Listed December 21, 2021
- Used – Good
- Electric
Call for price
Ask the seller for current pricing.
This machine has sold.
See roll formers in stock
Specifications
| Brand | Englert |
|---|---|
| Model | FP Machine |
| Equipment type | Roll Formers |
| Condition | Used – Good |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4310 |
| Length | 123 in. (3.13m) |
| Width | 31.5 in (.8 m) / 36.5 in. (.93 m) with rack. |
| Height | 29 in. (.75m) / 53 in. (1.35m) with rack. |
| Weight | Approximately 1,900 lbs. (861.8 kg) |
| Power | 1.5 HP electric motor 120V/20AMP. |
| Forming | 4 polyurethane drive roller stations, chain driven. |
| Shear | Easy cut rack and pinion manual hand shear. |
| Speed | Approximately 40 ft. (12.18m) per minute. |
Description
This FP1300/16 fixed panel roofing machine runs variable length, fixed width single-profile 0.5 inch (12.7mm) wide x 1.5 inch (38.1mm) high mechanically seamed panel configuration with a 16 Inch (490.4mm) coverage.
What to check on a used roll former
- Confirm which profiles, rib rollers and shear dies are included, then run a test panel in each one.
- Check the polyurethane drive rollers for cuts, flat spots and any separation from the hub.
- Look for scoring or rust on the forming rollers and run 24-gauge steel to check for oil canning.
- Inspect the hydraulic power pack for leaks, read the hour meter and check the oil.
- Cycle the shear and controller and measure length accuracy over a 20-foot panel.
- Walk the trailer: axles, tires, brakes, lights, VIN plate and a clean title.
