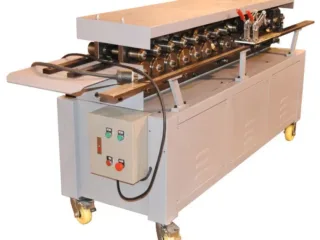

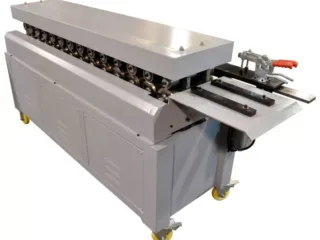

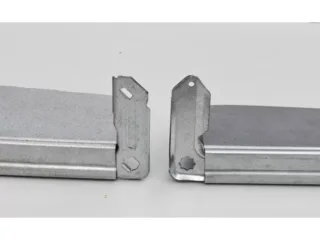

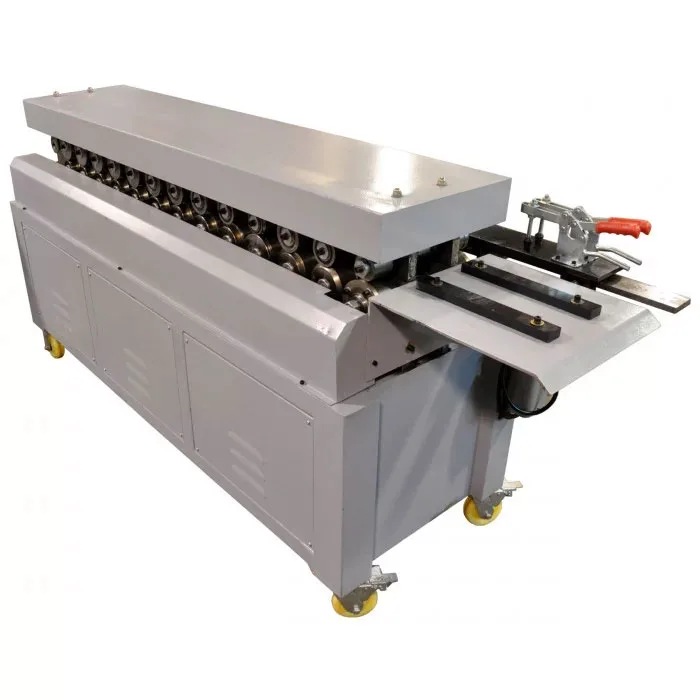

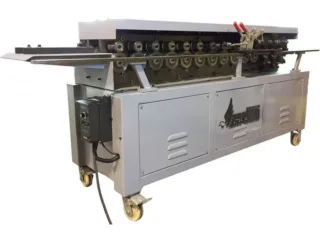

TDFC flange forming machine designed for HVAC industry. Integrated flange roll formed with this machine would accommodate corners made for standard TDC and TDF. transverse duct connector or transverse duct flanges as: Cornermatic, VDCI corners, VDCI-F corners, Auto C corners, Cornermate C corner, cornermate F corner etc.

What is the difference?
Usage of duct manufacturing equipment helps saving expenses because it is
highly automated and performs the tasks precisely. The manufacturers provide two main units. When are they used? There are two types of profile ducts. The piece can be made with a hem turned in and out respectively. Correspondingly there is TDF. (transverse duct flanges) and TDC. (transverse duct connections) profile duct. The former is preferred due to its safety and used as a flange profile on the duct ends. To produce them different machines are needed. There are models with numerous features including the
saving of material, time, being efficient, and durable.

Why should you buy it?
This TDFC flange forming machine allows an operator to make a flange much easier. If there is no equipment, the only solution is to act manually. It will take many more steps to get the worse result. It is required to take a flange, cut four pc, smooth it
out, make it matching corners, fix on the end of the raw edge with screws, or using welding. This is a labor-intensive and time taking process involving the crafters with special skills. Using the automatic TDFC unit, it is easy to simplify and boost the process. Just notch a sheet and allow the machine to perform all the actions: to roll form a flange, bend up a duct, and finish the product on a corner fixing machine automatically. The TDFC duct machine will save about two digit amount per joint.

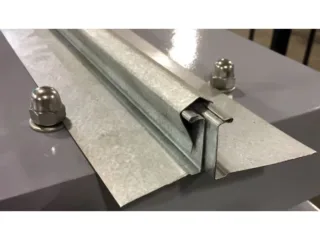

Our machine has an entrance slitter on the cleat side – so you can turn any of your long and wide enough metal leftovers into a cleat with simple feeding with pre-cut.

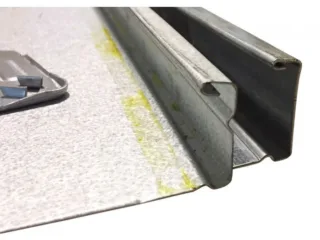

Our machine makes a convertible flange! With the replacement of just two extra forming rollers you can make standard flat flange or grooved. Grooved enforced flange is stronger than the standard because of the rib. The groove also makes room for the the seal or glue if needed.

We deliver a wide range of machines and beneficial offerings. The appliance of TDFC machine for sale allows saving expenses. Also, we provide a warranty for three years.

Technical parameters:
Roll-forming speed, feet per min 45*
Quantity of the forming  passes 15 flange, 14 cleat.
Capacity 18-24 gauge for the flange
22 gauge for Cleat

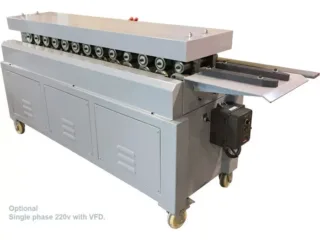

Main motor power 5 Hp / 220-240v / 60Hz/ 3 phase.
Size LхWхH 110 х 30″ h48 ”
weight 2100 lbs
