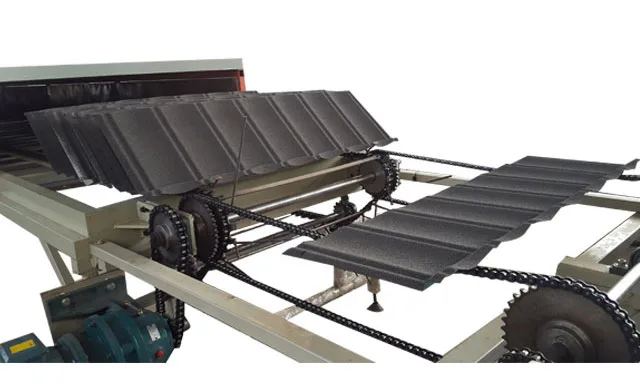

Huachen Vermiculite Tile Sheet Production Line

Vermiculite Tile Sheet Production Line

New UM-4371 Listed November 21, 2023

  • New
  • Electric

Call for price

Ask the seller for current pricing.

Huachen Vermiculite Tile Sheet Production Line

Specifications

Specifications
BrandHuachen
Equipment typeRoll Formers
ConditionNew
PowerElectric
ShippingFreight or local pickup
InspectionAsk the seller
Stock numberUM-4371

Description

Bond: 1Set
Classic: 1Set
Shingle: 1Set
Roman: 1Set

Automatic Spraying Glue System
Outside Dimension: 2000mm*1650mm*850mm(L*W*H)
Structure: Channel steel, welded.
Conveying Device: Chain conveys.

Motor Power: 0.75KW
Adsorption of dust removal equipment: 1Set
Air Compressor: 1Set.

Power: 7.5KW.

Air Output: 2m³/min
Automatic high-pressure airless spraying gun: 2Set
High-pressure airless manual spraying gun: 1Set
High-pressure airless feed tube and it can support the maximum pressure is 20Mpa.
60L stainless charging glue busket: 1Pieces.



Automatic Sandblasting Room
Outside Dimension: 2000mm*1850mm*700mm(L*W*H)
Structure: Channel steel, angle steel, welded.
Transmission: Chain transmit.

Motor Power: 0.37KWX2
Sand Hopper: 1 Set.Dimension:1550*550*580
Automatic Shaking Sand System: 2Cylinder.

Control Mode: PLC



First Drying Room
Outside Dimension: 30000mm*1600mm*1500mm(L*W*H)
Structure: Channel steel ,welded.
Frame Insulation Wall: 1mm carbon steel plate bending forming filled with cotton insulation.
Automatic temerature controller: 5Sets.

Range of adjustable temperature: 0-160°
Infrared fluorescent tube: 50Pieces
Conveying Device: chain conveys.

Motor Power: 4.5KW



Automatic Surface Glue Spraying Equipment
Outside Dimension: 2000mm*1650mm*850mm(L*W*H)
Structure:Channel steel,welded.
Conveying device: chain conveys.

Motor: 0.75KW
Adsorption of dust removal equipment: 1Set
Automatic high-pressure airless spraying gun: 2Set
High-pressure airless manual spraying gun: 1Set
High-pressure airless feed tube and it can support the maximum pressure is 20Mpa
60L stainless charging glue busket 1Piece.



Second Drying Room Equipment Component
Outside Dimension: 30000mm*850mm*700mm(L*W*H)
Structure: carbon steel welded.
Frame insulation wall: 30 meters’ long.

1mm carbon steel plate bending forming filled with cotton insulation.
Automatic temperature controller: 5 sets.

Range of adjustable temperature: 0-160°
Infrared fluorescent tube: 50Pieces
Conveying device: chain conveys
Total equipment matches total control station 2Sets (Control system)
Productivity:eight hours, produce 4000pcs every day.
Whole machine power: 160KW
Spare parts:Infrared fluorescent tube 10Pieces.

Nozzle: 2Pieces

What to check on a used roll former

  • Confirm which profiles, rib rollers and shear dies are included, then run a test panel in each one.
  • Check the polyurethane drive rollers for cuts, flat spots and any separation from the hub.
  • Look for scoring or rust on the forming rollers and run 24-gauge steel to check for oil canning.
  • Inspect the hydraulic power pack for leaks, read the hour meter and check the oil.
  • Cycle the shear and controller and measure length accuracy over a 20-foot panel.
  • Walk the trailer: axles, tires, brakes, lights, VIN plate and a clean title.
