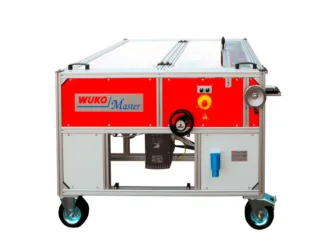

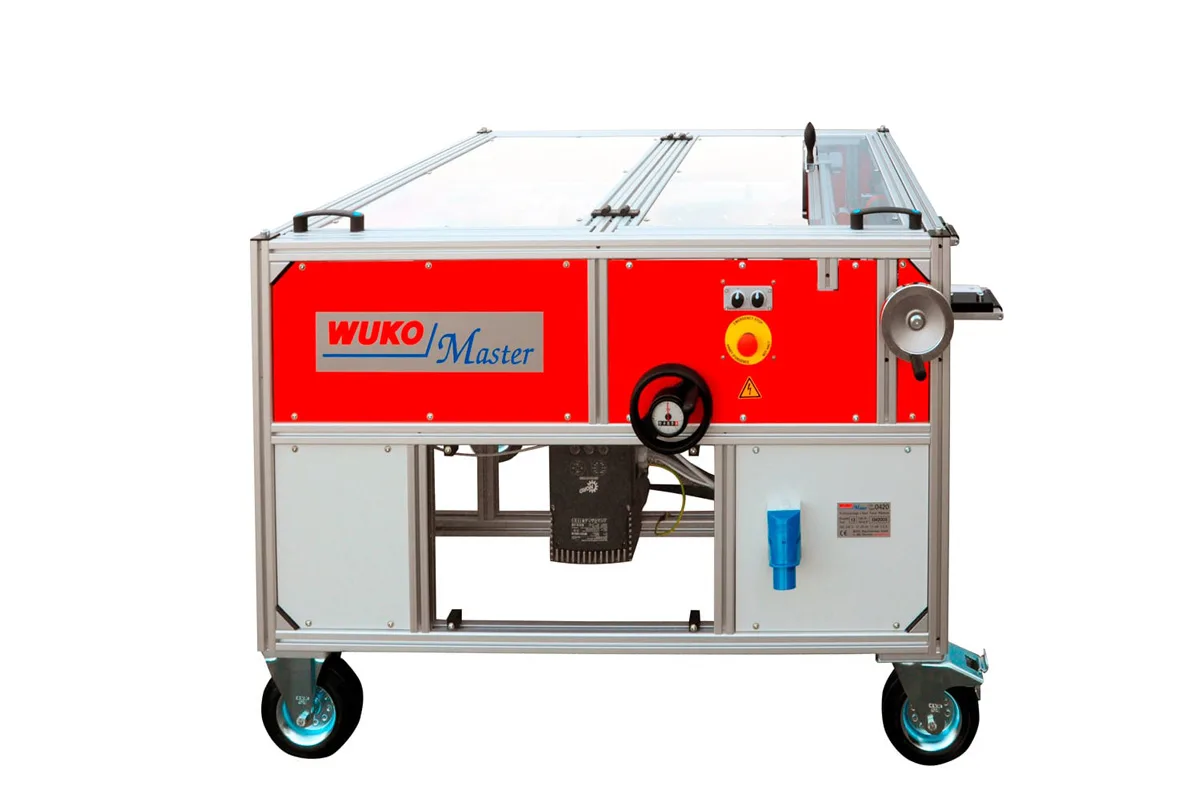

Roof panel machine for making the profile for single and double-lock standing seams (seam height 25 mm / 1″).
Profiling
- Fabrication of the profile for the single or double-lock standing seam

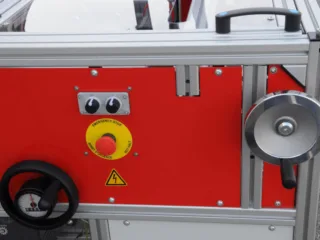

seam height 25 mm / 1″ - Working width between 290 and 810 mm / 11.5″ and 32″ continuously adjustable by hand wheel over two spindles
panel width about 210–730 mm / 8.3–28.7″ - Inlet guides easily and precisely adjustable (measure correction on the profile)
- Clean profile, poor in tension, made by eight hardened roll forming stations

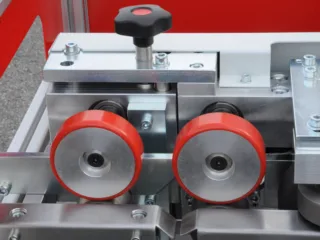

- 8th forming station for aligning the panels and for curving the panels – convex or concave – smallest radius about 6 m / 20′
- Cut‐proof, extremely resilient polyurethane coated drive rollers

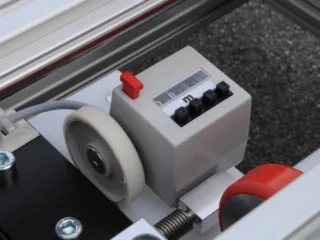

- Electromechanic preset counter – safely placed within the frame
- Also for profiling short (min. length about 500 mm / 20″) or tapered panels
