Zimmerman Z Panel Machine

Call for pricing

Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.

Used

UMRM Trusted

Member since Oct 2021

Message the seller

Join free to send a message

Already a member? Log in

Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.

Safety tips · Inspection checklist

Details

Condition
Used
Model
Z Panel
Listed
Feb 28, 2023
Updated
Feb 28, 2023

Description

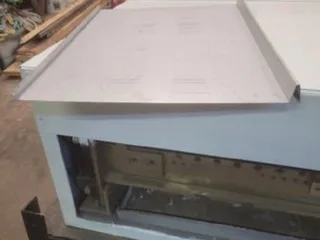

Tooled for 1 1/2″ snap-clip panels, plus 1″ U panel with moveable stiffener ribs. Runs 12″ -22″ wide panels, 20″ strip for a 16″ panel. 24g – 26g galvalume & painted steel, copper & aluminum. Electric motor drive and shear, target length stop and shear control, portable hand control for machine functions. Elec: 110v 1ph 60cy. 1 – 3000lb decoiler reel, shop base.

Machine is all in good operating condition, can video if interested.

Specifications

Listed price (as posted)$40,00.00
PowerElectric
MachineZimmerman Z-Panel
Tooling on this machine1-1/2 in snap-clip panel and 1 in U panel with movable stiffener ribs (per seller)
Panel width12 in to 22 in on this machine per seller (Z-Panel range 12 in to 24 in)
Coil width16 in to 28 in
Material capacitysteel to 24 ga, aluminum to .032 in, copper to 20 oz
Motor1-1/2 HP electric, 110 V single phase
Shearhydraulic guillotine

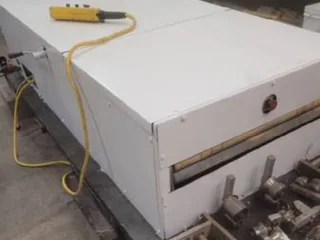

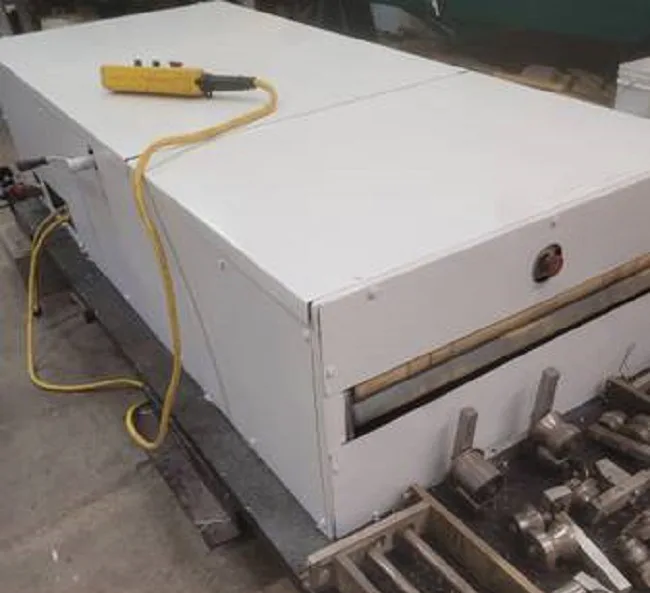

Controlslength stop, shear control and hand-held remote
Machine dimensions94 in L x 40 in W x 22 in H
Machine weight2,000 lbs
Includedone 3,000 lb decoiler reel, shop base (per seller)
Please notePublished figures for this model, not measured on this machine. Confirm details with the seller.
