4×5 and Round & square elbow machine

Get a quote

Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.

New

UMRM Trusted

Member since Oct 2021

Message the seller

Join free to send a message

Already a member? Log in

Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.

Safety tips · Inspection checklist

Details

Condition
New
Listed
Oct 7, 2024
Updated
Nov 22, 2026

Description

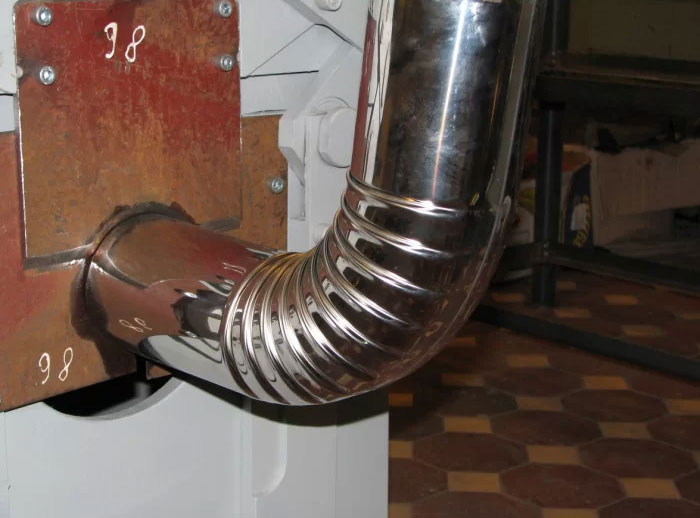

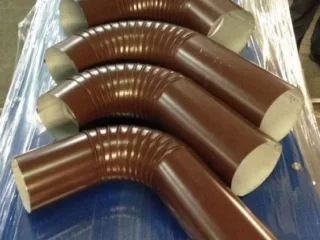

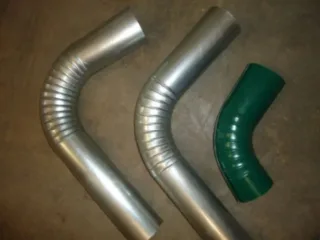

Industrial automatic elbow machine designed to produce square and round downspout and HVAC elbows with seamed and welded ducts.

Standard machine size range: rectangle 4×5,  round 6″ to 8″

Materials: machine operates with pipes made of aluminum, copper, galvanized steel, stainless steel, PPGI.

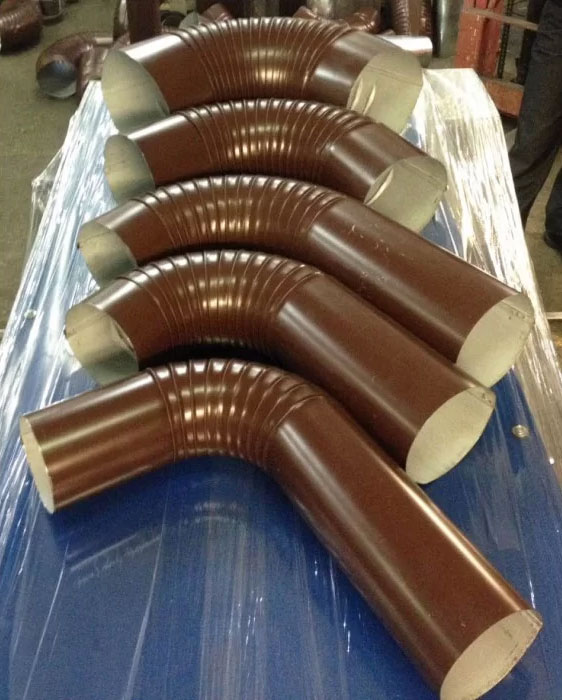

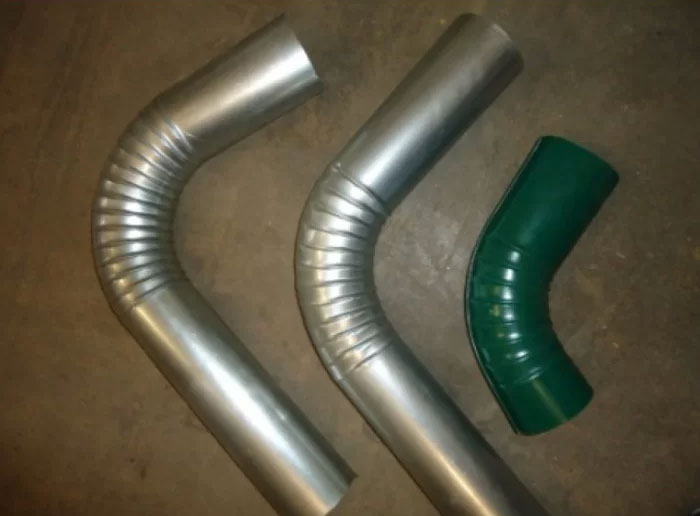

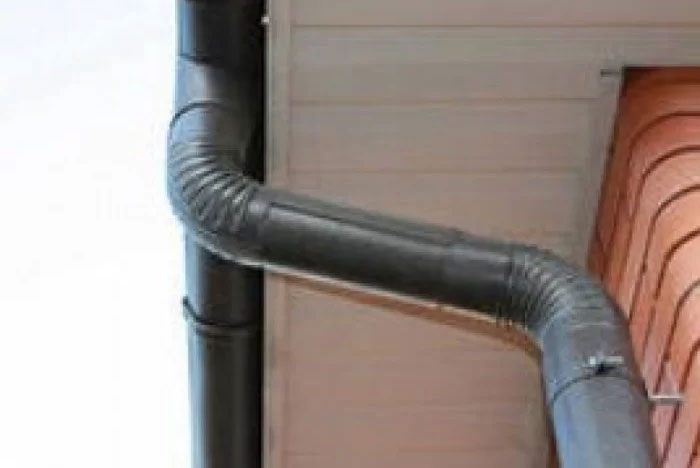

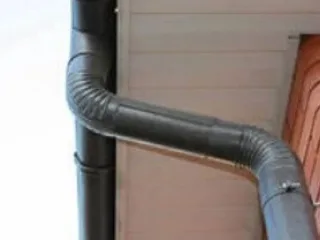

Final product widely used in downspout, chimney, exhaust and HVAC systems.

Productive capacity depends on size of the pipe and varies in range of 2 to 7 pc per minute.



Advantages:

  • Easy operation and high performance

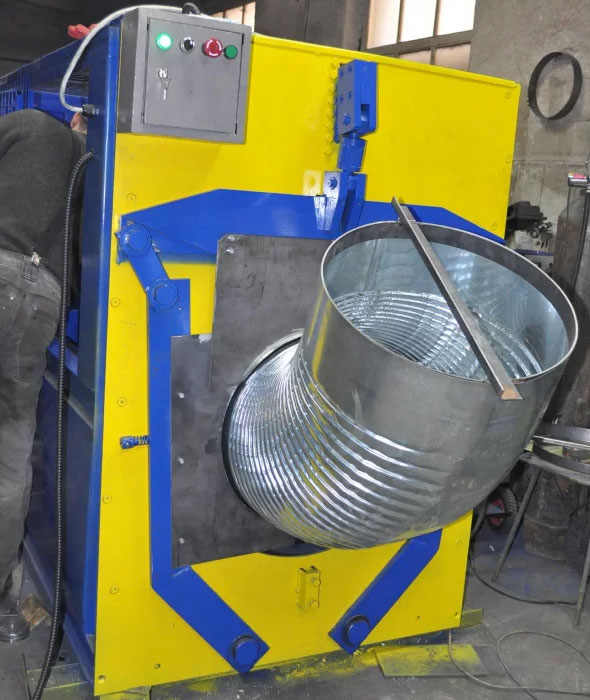

  • Wide operational diameter range 3″ – 24″ (custom design)
  • Round and Square dies available
  • Reasonable price

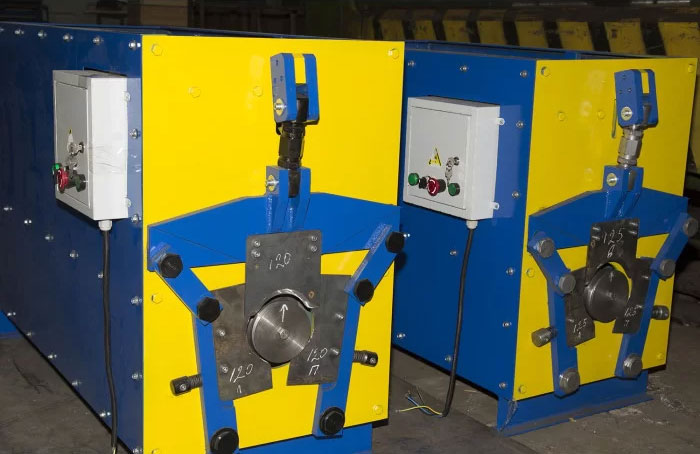

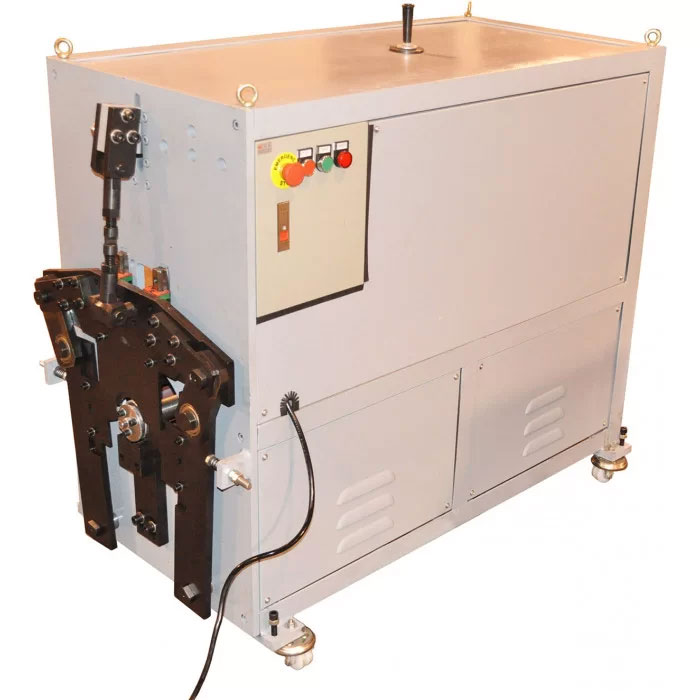

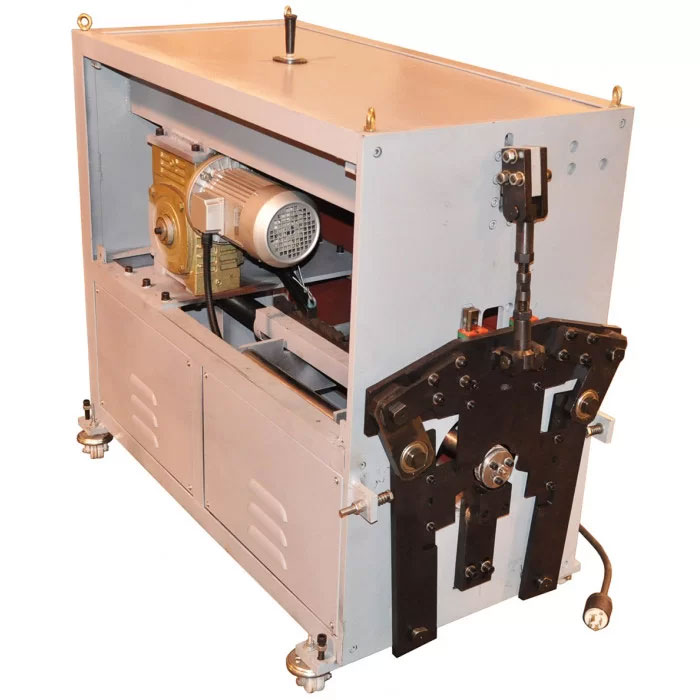

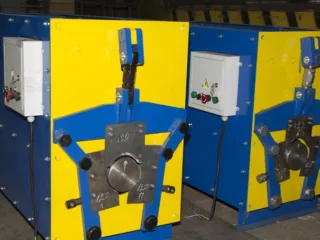

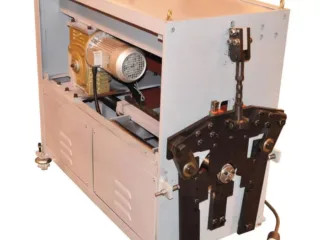

Main parts:

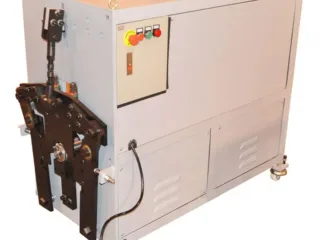

1. Control Panel
2. Set of dies
3. Angle adjustment (to set required quantity of the crimps).
4. Main motor reducer.

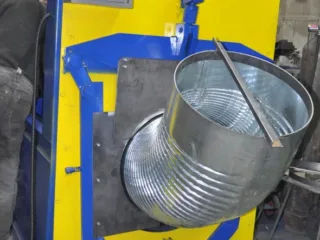

5. Rotary attachment on the side for the round ducts / edge crimping tool for square ducts.

This automatic elbow machine crimps finished pipe into square and round elbows for downspout, chimney, exhaust and HVAC runs. The standard tooling covers 4×5 rectangular pipe and 6 to 8 inch round pipe, and other dies can be ordered. It works with aluminum, copper, galvanized steel, stainless steel and PPGI pipe, seamed or welded. Output runs from 2 to 7 elbows a minute depending on pipe size, which suits gutter suppliers and sheet metal shops making elbows in volume.

Specifications

PowerElectric
Machine typeAutomatic elbow machine
MakesSquare and round downspout and HVAC elbows
SizesRectangle 4x5; round 6" to 8" (standard)
MaterialAluminum, copper, galvanized steel, stainless steel, PPGI pipe
Production rate2 to 7 pc per minute (depends on pipe size)
ToolingRound and square dies; rotary attachment for round, edge crimper for square
OptionsCustom dies, diameter range 3" - 24"
