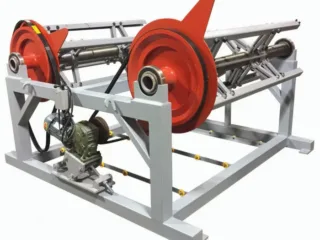

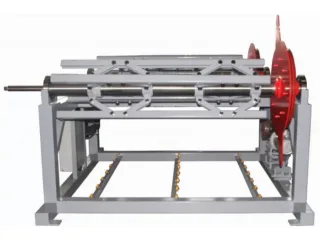

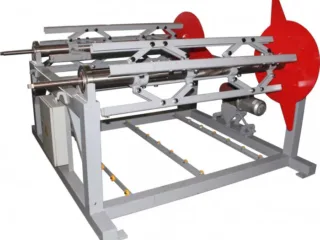

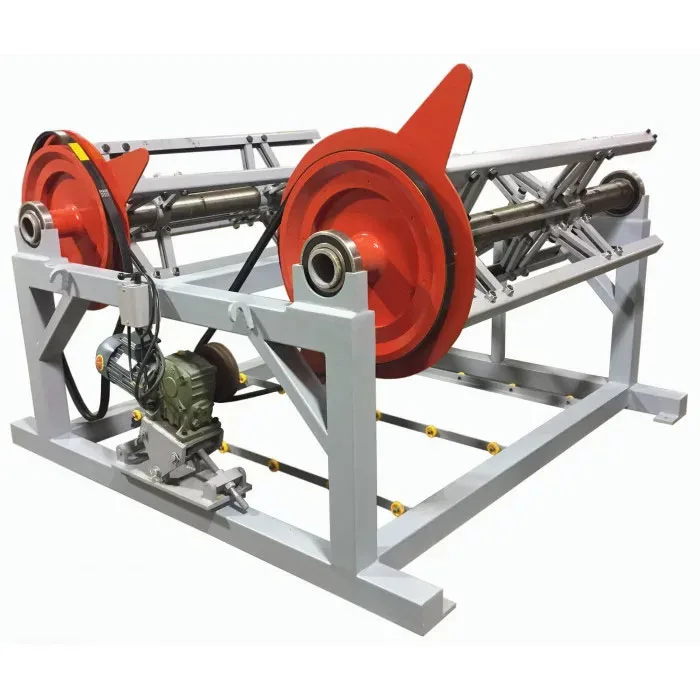

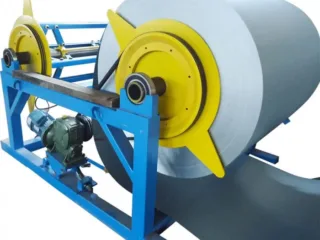

StanGroup 5′ Motorized Double Decoiler
5′ Motorized Double Decoiler
New UM-4421 Listed October 11, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | N/A |
| Equipment type | Decoilers |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4421 |
Description
Motorized unit. Max coil: weight 10.000lbs, width 60″, ID 24″
5′ Motorized Decoiler made to hold and spin coiled materials as metal, plastic, paper or else rols.
Maximum weight of the coil is up to 10000 lbs. Maximum width of the coil is 60 inches.
Self centering coil holder with manual drive is easy to install and fix inside of the metal coil. Side guides hold coil of sliding sideways. Unit equipped with one 2Hp motor with 1:40 gear box on a swing tension device. Two double V-shape belts used to drive reels. By default unit goes with forward/stop/reverse switch. Optionally can be equipped with single or 3 ph VFD drive – to match speed of your roll-forming machine and limit switch for automatic feeding.
| Technical parameters | |
| Range of the Inside coil diameter | 16 – 24 inches |
| Maximum weight | 10000 lbs |
| Maximum coil width
Motor Power Hp Voltage |
60 inches / 1500 mm / 5
2Hp 220v 3Ph |
| Size, LхWхH* | 87″x87″ x H70″ |
| Weight* | 2200 lbs |
What to check on a used decoiler
- Match the rated coil weight and inside diameter range to the coils you actually buy.
- Check the mandrel expansion, brake and bearings for play, leaks and smooth rotation.
- Confirm the drive type and voltage, and whether a loop or tension control is included.
