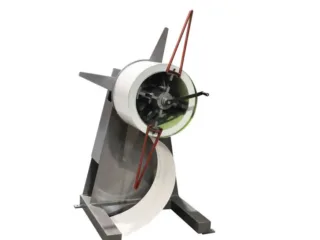

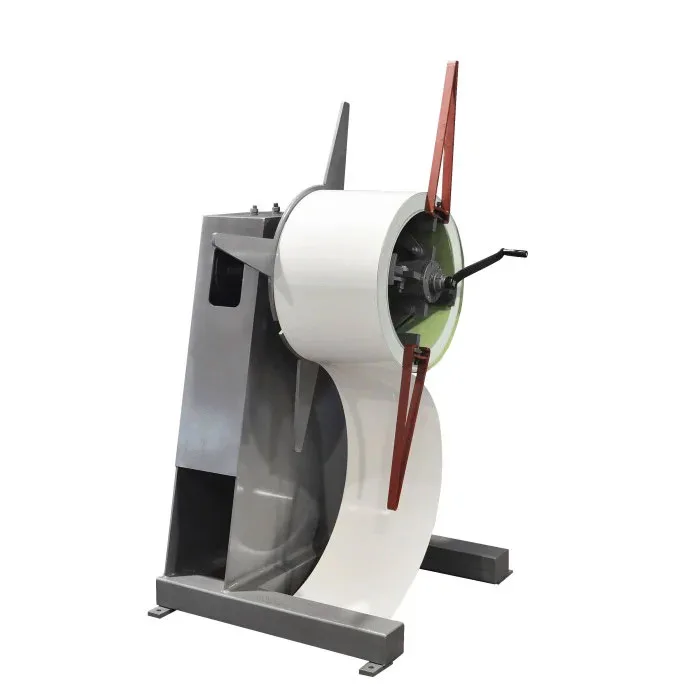

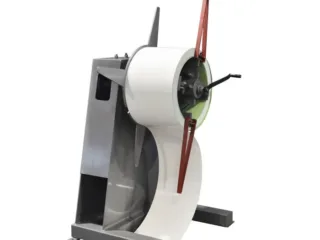

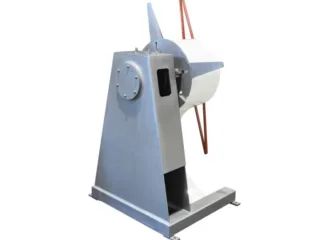

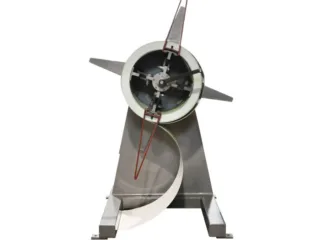

StanGroup Manual Decoiler DC500

Description

Max coil: weight 4000lbs, width 16″, ID range 16″ to 21″

Manual Decoiler DC500 designed to hold and hold and spin coils of material of a coil.

Maximum weight of the coil is up to 4000 lbs.

Maximum coil width up to 16 inches.

Decoiler can be used to uncoil steel, aluminum, copper, plastic, paper and other materials.

Self Centering coil holder is easy to install and fix inside of the metal coil.

Optional modification:

Customization of the ID – OD range;

Installation of the motor, gear box, belt drive and automatic start/stop function with limit switch.

Operation way:

To install the coil with material on the decoiler you must do as follow:

1. Use hand wrench to shrink the reel diameter less than your coil inside diameter ID

2. Set the coil on the reel

3. Expand self centering coil reel with a wrench (or impact), to fix coil on the reel;

4. Set limiters on the reel paws

5. Adjust brake.

Once you pull out age of the material from the coil – coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, expanding wrench, and limiters for the reel paws.

Safety requirements: maximum weight for the full width coil is 5000lb.
