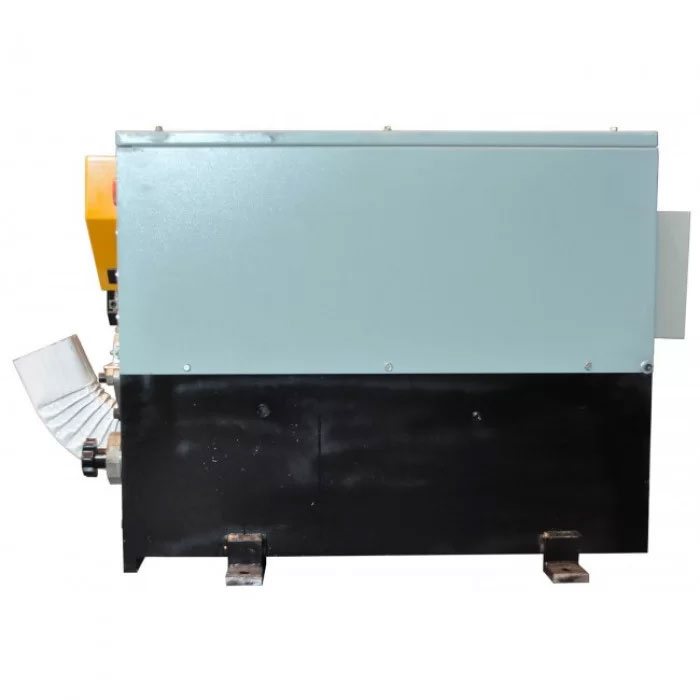

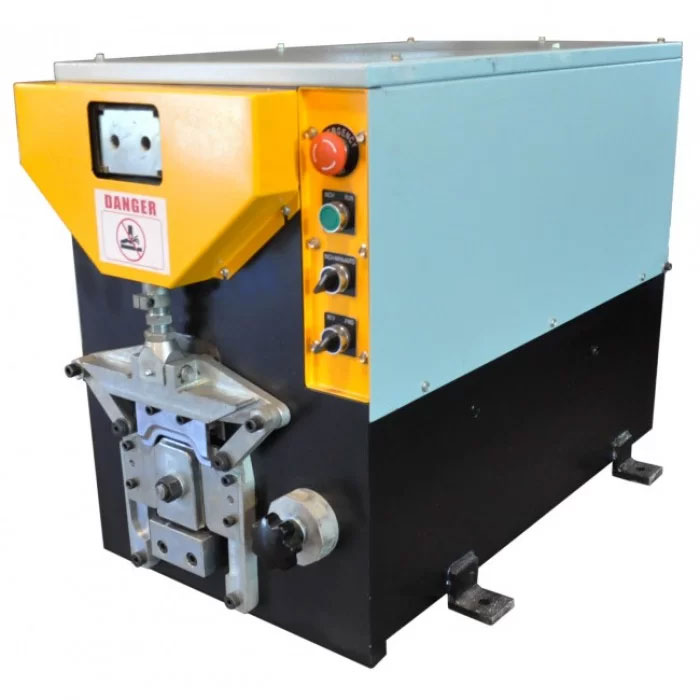

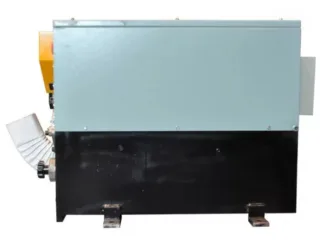

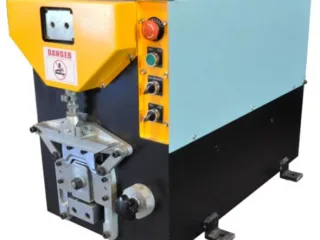

Electrical round and square downspout elbow machine LEL

Get a quote

Steel, tariff and freight costs are moving prices right now. Message the seller for today's price.

New

UMRM Trusted

Member since Oct 2021

Message the seller

Join free to send a message

Already a member? Log in

Buy safely: see it run in person or on a live video call, check the serial plate, and pay only after you've verified the seller and the title. Never use an "escrow" service the seller picks.

Safety tips · Inspection checklist

Details

Condition
New
Model
LEL
Listed
Oct 9, 2024
Updated
Nov 22, 2026

Description

Standard Elbow machine designed to produce square and round elbows from the seamless or welded ducts.
Standard downspout machine size range (standard set of dies): rectangle 2×3 3×4, round 2 in. 3 in. 4in.
Materials: machine operates with pipes made of aluminum, copper, galvanized steel, PPGI.
Final product widely used in downspout and HVAC systems.
Productive capacity depends on size of the pipe and varies in range of 2 to 6 pc per minute.


Model: LEL

Motor: 1.5 HP, 110VAC

Size: 35 x 20 x 24 in. high

Weight: 575 lbs.

Maximum Gauge: .024 alum., 26 ga. steel

Speed: 10 sec. for 75 degree elbow

Operation: Automatic or Manual

Front Mounted Crimper

Reverse Switch

Drive: Direct drive double cam

Dies available
Rectangle: 2×3 3×4
Round: 2 in. 3 in. 4in.

Assembled in US.

The LEL is a compact electric elbow machine for gutter contractors and downspout suppliers who make their own elbows. Standard dies cover 2×3 and 3×4 rectangular pipe plus 2, 3 and 4 inch round pipe, in aluminum up to .024 or 26 gauge steel. A 1.5 HP motor on 110 VAC power forms a 75 degree elbow in about 10 seconds, in automatic or manual mode. At 575 lbs and 35 x 20 x 24 inches it needs little shop floor.

Specifications

PowerElectric
ModelLEL
MakesSquare and round downspout elbows
SizesRectangle 2x3, 3x4; round 2 in., 3 in., 4 in.
MaterialAluminum, copper, galvanized steel, PPGI pipe
Material thickness.024 alum., 26 ga. steel (maximum)
Motor1.5 HP, 110 VAC
Production rate2 to 6 pc per minute; 10 sec. for 75 degree elbow
DriveDirect drive double cam
ControlAutomatic or manual; reverse switch
ToolingFront mounted crimper; interchangeable dies
Machine dimensions35 x 20 x 24 in. high
Machine weight575 lbs.
