Manual Decoiler 51/8

Description

Max coil: weight 10.000lbs, width 51″, ID 24″

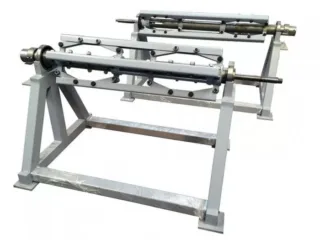

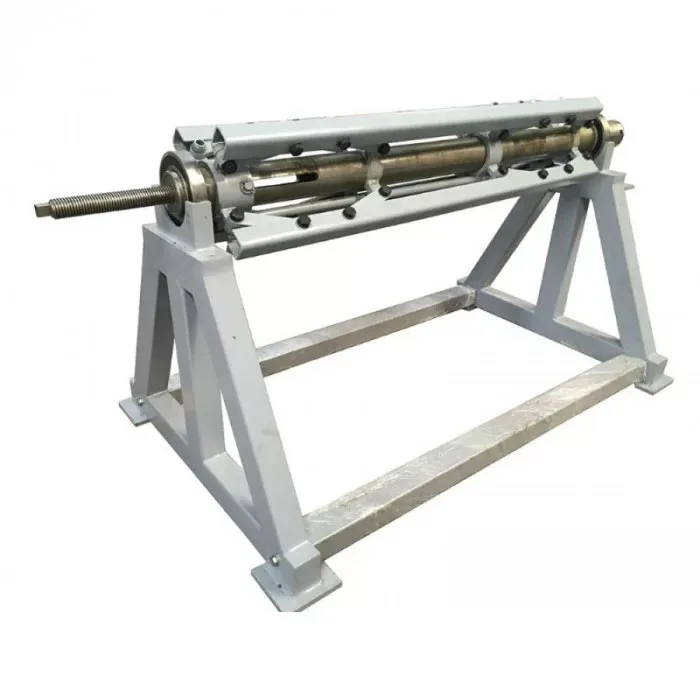

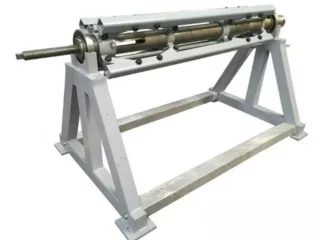

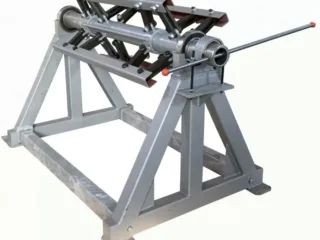

Manual Decoiler DC51 designed to hold and decoil sheet materials from the coils.

Maximum weight of the coil is up to 15500 lbs (7000kg). Width is up to 51 inches (1300mm, 4.2 feet).

Decoiler can be used to uncoil metal, plastic, paper and other materials.

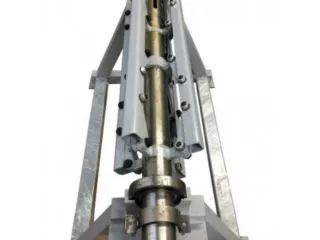

Self Centering coil holder is easy to install and fix inside of the metal coil.

Operation way:

To install the coil with material on the decoiler you must do as follow:

1. take of self centering coil reel from the stand;

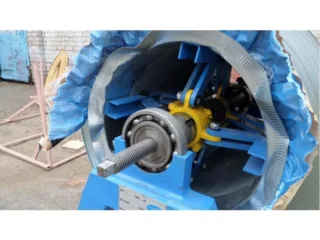

2. insert coil reel inside of the metal coil;

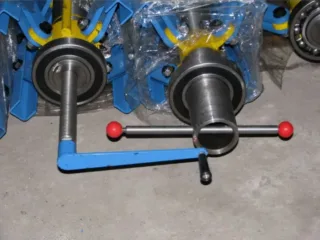

3. expand self centering coil reel with a hand wrench, to fix coil reel inside of the material coil;

4. install coil reel with metal coil back on the stand,

5. fix coil reel to stand with brake fixture.

Once you pull out age of the material from the coil – coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, unwinding handle and expanding wrench.

Safety requirements: lower joint bars must be welded to triangle stands before operation.
