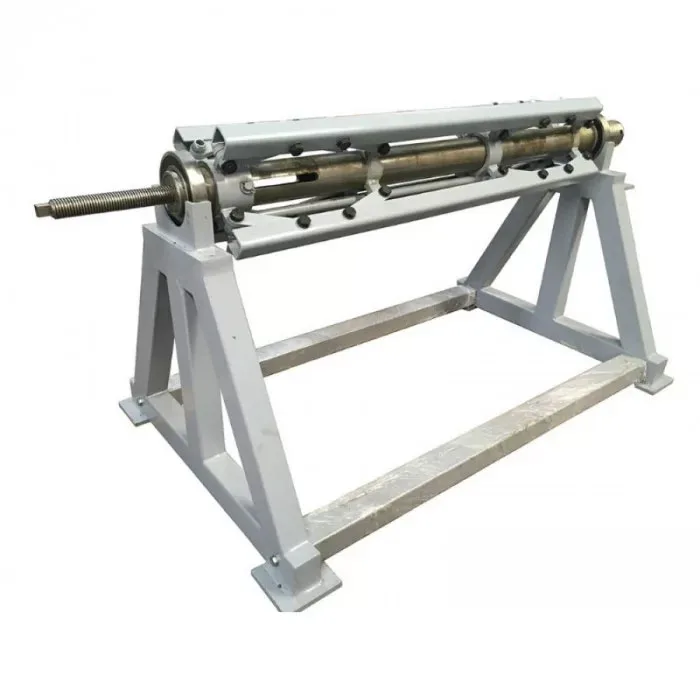

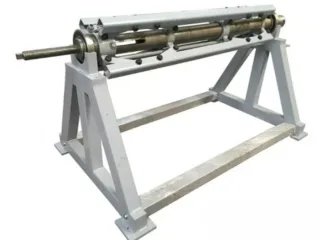

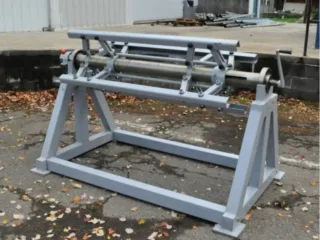

StanGroup Manual Decoiler 60/8
Manual Decoiler 60/8
New UM-4415 Listed October 11, 2024
- New
- Manual
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | N/A |
| Equipment type | Decoilers |
| Condition | New |
| Power | Manual |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4415 |
Description
Max coil: weight 10.000lbs, width 60″, ID 24″

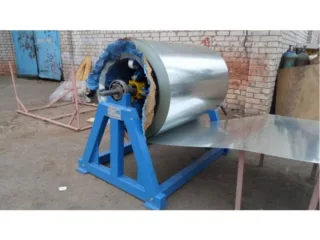

Manual Decoiler 60/8 designed to hold and decoil sheet materials from the coils.
Maximum weight of the coil is up to 10,000 lbs (4,535 kg). Width is up to 60 inches (1.5m / 5 feet).
Decoiler can be used to uncoil metal, plastic, paper and other materials.

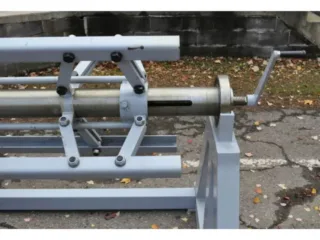

Self Centering coil holder is easy to install and fix inside of the metal coil.
Operation way:
To install the coil with material on the decoiler you must do as follow:
1. take of self centering coil reel from the stand;
2. insert coil reel inside of the metal coil;
3. expand self centering coil reel with a hand wrench, to fix coil reel inside of the material coil;
4. install coil reel with metal coil back on the stand,
5. fix coil reel to stand with brake fixture.

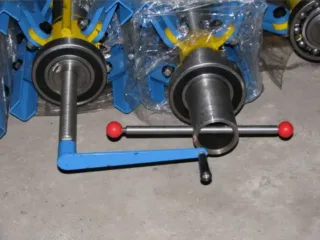

Once you pull out age of the material from the coil – coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, unwinding handle and expanding wrench.
Safety requirements: lower joint bars must be welded to triangle stands before operation.
| Technical parameters | |
| Range of the Inside coil diameter | 14 – 25 inches / 355 – 635 mm |
| Maximum weight | 10 000 lbs / 4,535 kg |
| Maximum coil width | 60 inches / 1.5 m / 5 feet |

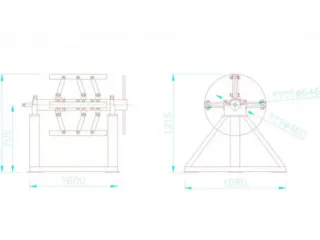

| Size, LхWхH* | 75x47x49 inches / 1900х1200х1250mm |
| Weight* | 770 lbs / 350 kg |
What to check on a used decoiler
- Match the rated coil weight and inside diameter range to the coils you actually buy.
- Check the mandrel expansion, brake and bearings for play, leaks and smooth rotation.
- Confirm the drive type and voltage, and whether a loop or tension control is included.
