StanGroup Manual Decoiler DC115
Manual Decoiler DC115
New UM-4419 Listed October 11, 2024
- New
- Manual
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | DC115 |
| Equipment type | Decoilers |
| Condition | New |
| Power | Manual |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4419 |
Description

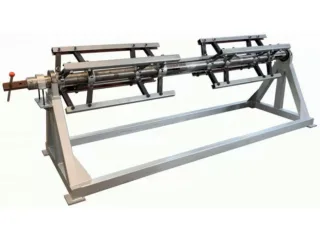

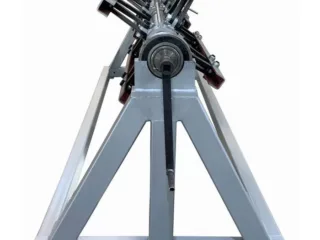

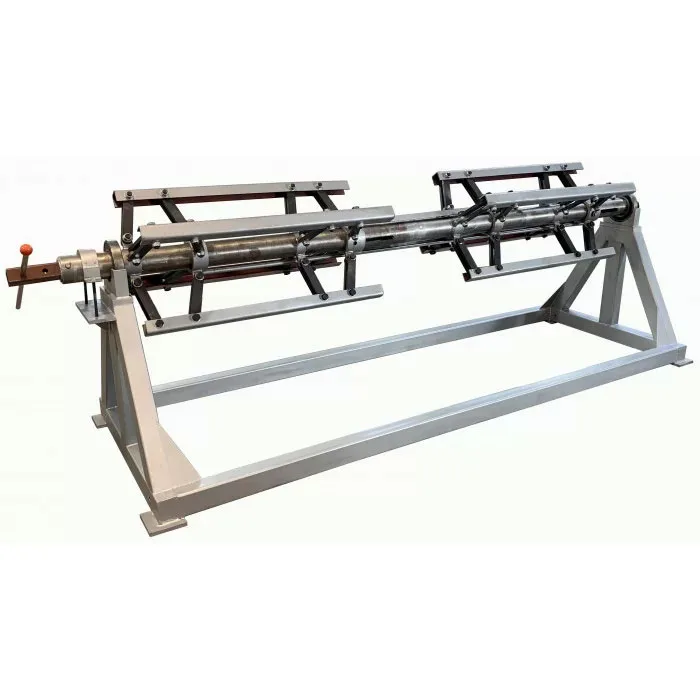

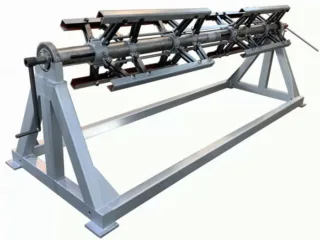

DC 115 Manual Decoiler characteristics:
Max coil: weight 10.000lbs, width 102″, I.D. 16″ to 24.5″
Manual Decoiler DC115 designed to hold coil of material as paper, metal or plastic.
Maximum weight of the coil is up to 11500 lbs (5200kg). Maximum coil width 102 inches (2.59m / 8.5 feet).
Decoiler can be used to uncoil metal, plastic, paper and other materials.
Self Centering coil holder is easy to install and fix inside of the metal coil.
Operation way:
To install the coil with material on the decoiler you must do as follow:
1. take of self centering coil reel from the stand;
2. insert coil reel inside of the metal coil;
3. expand self centering coil reel with a hand wrench, to fix coil reel inside of the material coil;
4. install coil reel with metal coil back on the stand,
5. fix coil reel to stand with brake fixture.

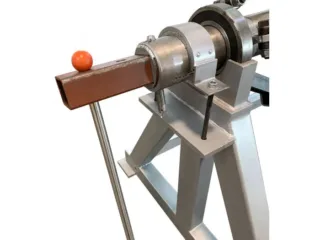

Once you pull out age of the material from the coil – coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, manual turn handle and expanding crank.
Safety requirements: unit stands should be bolted down to floor before operation.
| Technical parameters | |
| Range of the Inside coil diameter | 17.5 – 24.5 inches / 455 – 620 mm |
| Maximum weight | 11 500 lbs / 5 200 kg |
| Maximum coil width | 102 inches / 2.59 m / 8.5 feet |
| Size, LхWхH* | 132x45x49 inches / 3360х1150х1250mm |
| Weight* | 1200 lbs / 545 kg |
Optional: Motorized with belt drive and VFD controller and limit switch activation – 1500$
What to check on a used decoiler
- Match the rated coil weight and inside diameter range to the coils you actually buy.
- Check the mandrel expansion, brake and bearings for play, leaks and smooth rotation.
- Confirm the drive type and voltage, and whether a loop or tension control is included.
