StanGroup Industrial spiral tube former TF1500S
Industrial spiral tube former TF1500S
New UM-4404 Listed October 9, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | TF1500S |
| Equipment type | Spiral Tube Formers |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4404 |
Description
Spiral duct machine for good price in our company StanGroup.

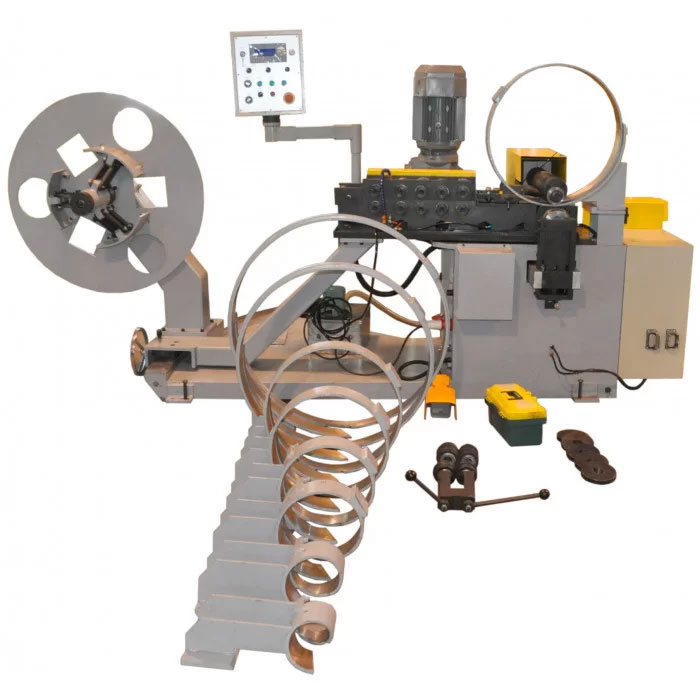

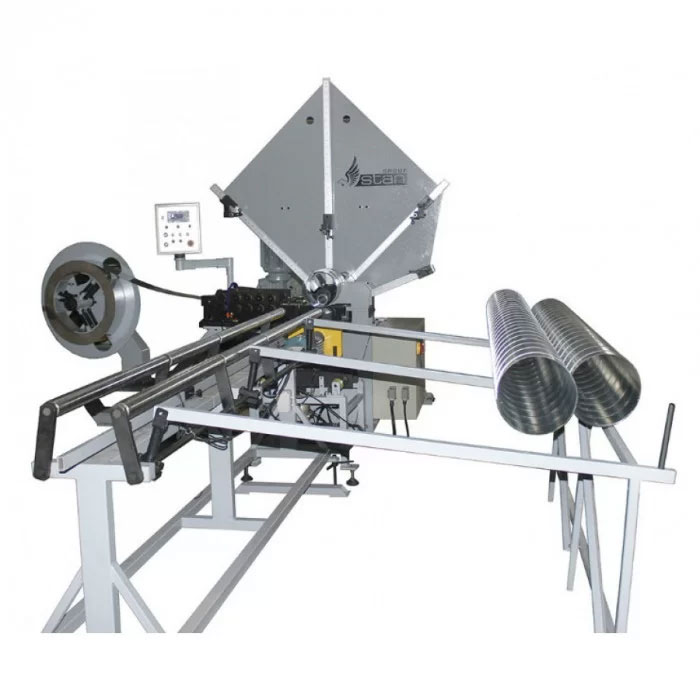

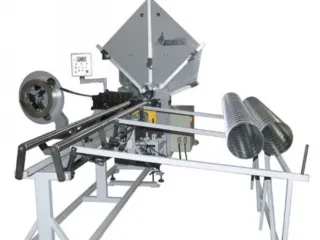

Advance model of the Industrial Spiral tube former TF1500S combines operation with Flexible and Fixed molds, Disc and Saw cutting.
Diameter range 3.15 to 60 inches (80-1500mm)
Thickness of the raw material: 28 ga – 18 ga (0.4-1.2mm)
Feeding Speed up to 100 ft/min (30 m/min)
Spiral tube former TF1500S designed to produce spiral ducts
Diameter range 3.5 to 60 inches (80-1500mm)
Thickness of different raw materials:
– galvanized steel: 0.4 – 1,2 mm (28 ga – 18 ga)
– stainless steel 0.4 – 0.8mm (28 ga – 22 ga)
– aluminum: 0.4 – 1.2mm (.016 – .047 inch)
Feeding Speed up to 100 ft/min (30 m/min)

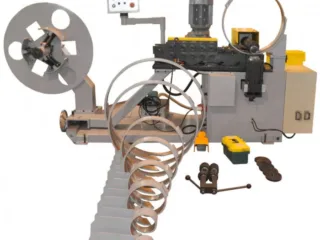

Standard delivery set:
Expandable metal strip coil holder with brake

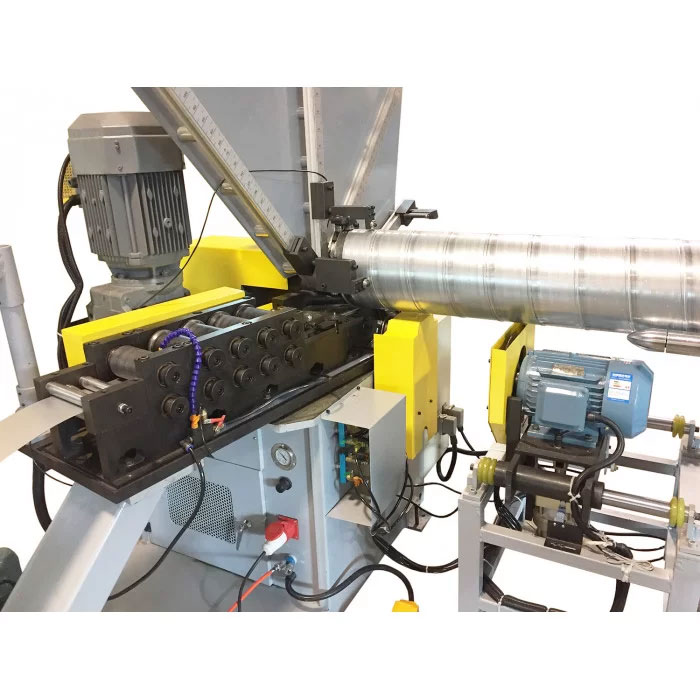

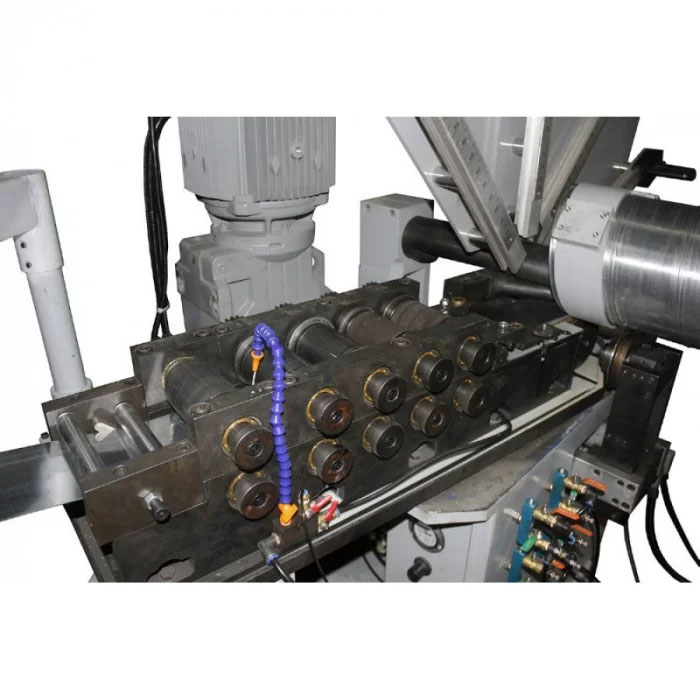

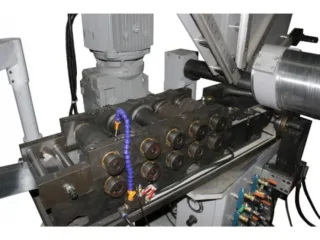

Tube-former with five stations roll-forming unit
Circulating lubrication system

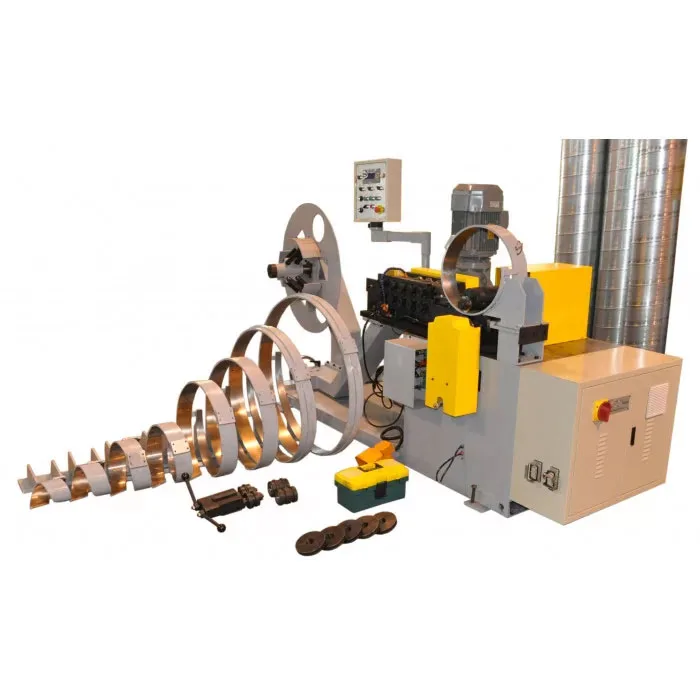

Set of flexible belts for various duct sizes in range of 3.15 to 60″

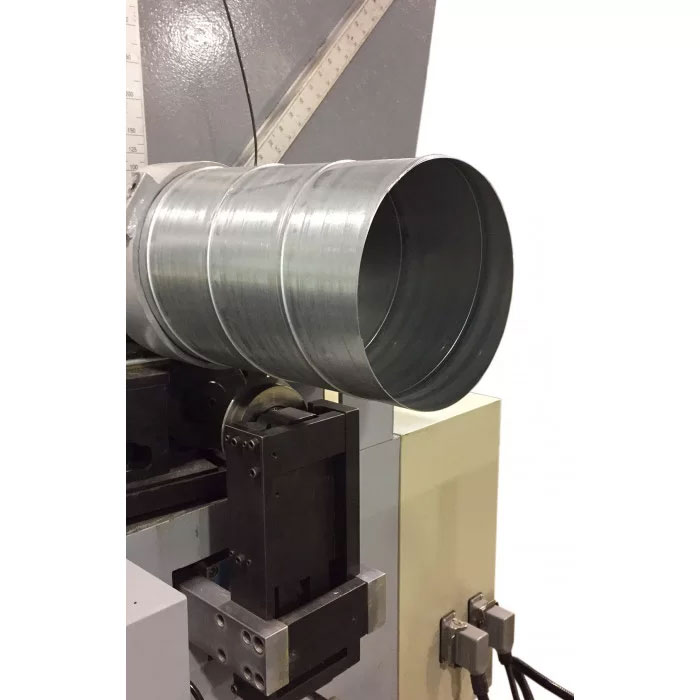

Disc blade cut off system
Saw cutting device for metal thickness over 22 Gauge and diameter below 8″

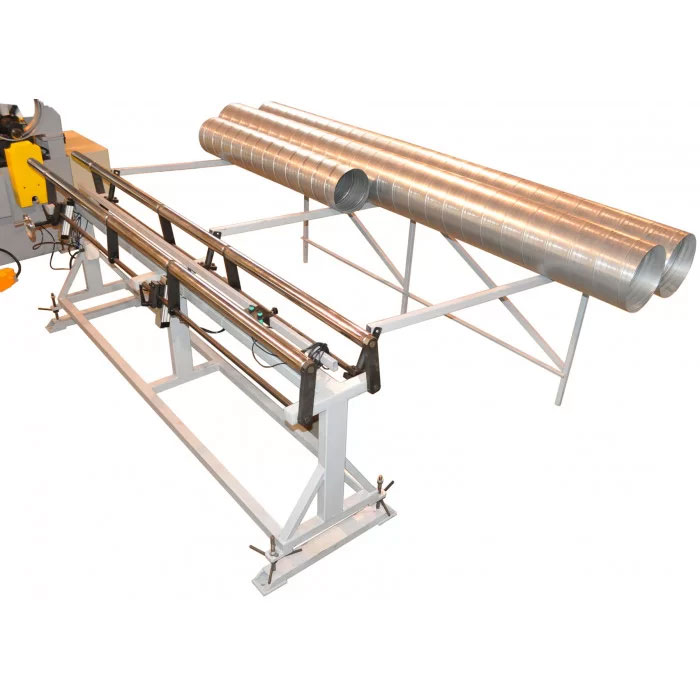

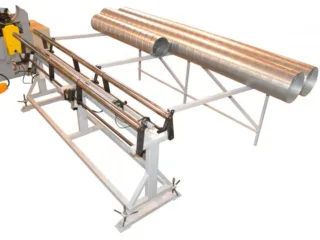

Automatic run out stacking table with pneumatic drive drop off system for ducts up to 20 feet length
Set of rollers to operate with 18 – 28 gauge raw material

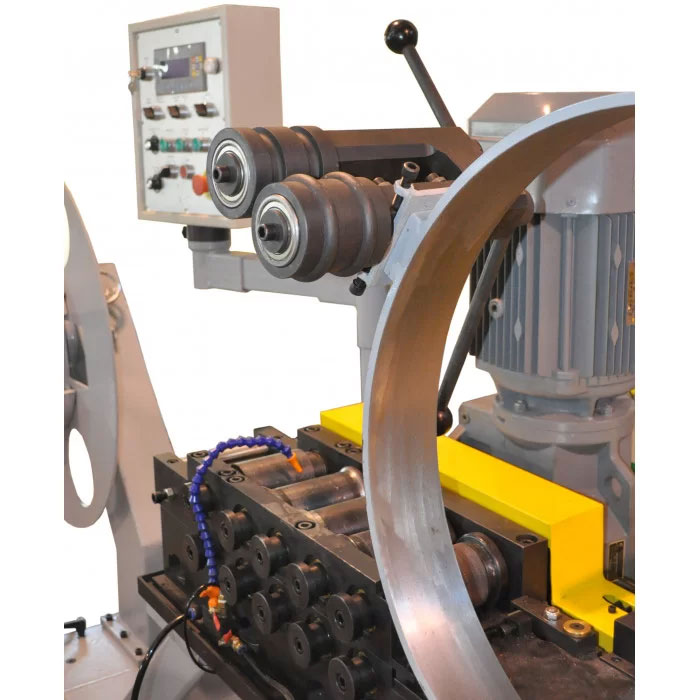

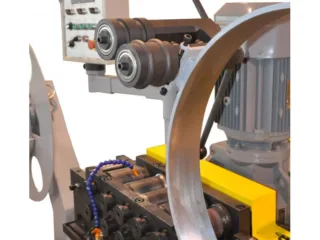

Bead rollers rollers for single, double, and triple bead.
Optionally: Fixed hard molds of various size diameters or standard set of Fixed molds for diameters 6″,10″,12″,14″,16″,20″,24″,30″, 36″ or any other diameter in range of 4″ to 60″ up to order.

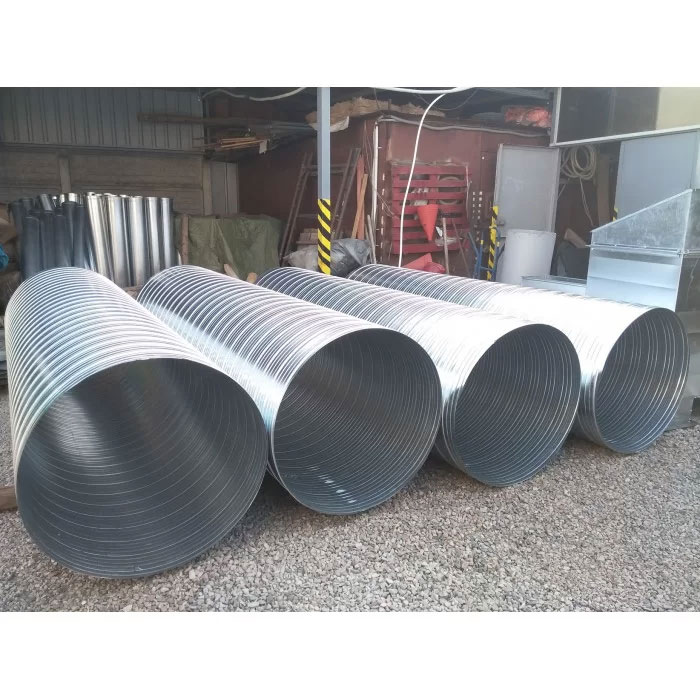

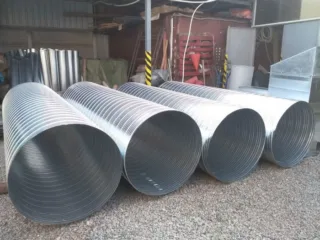

Spiral ducts used in HVAC (simply round ducts, ovalizing, squad spiral ducts), in dust transportation systems, PU insulated pipes as protective coverage.
| Technical parameters | |
| Model | TFS 1500S |
| Duct diameter | 3.5 – 60″ |
| Duct length* | 4″ – 40′ |
| Galvanized steel | 18 – 27 Gauge (BWG) |
| Stainless steel | 22 – 28 Gauge (USG) |
| Strip width | 5.4 – 5.5″ |
| Material | GI, stainless, copper. |
| Strip feeding speed | up to 100 feet/min |

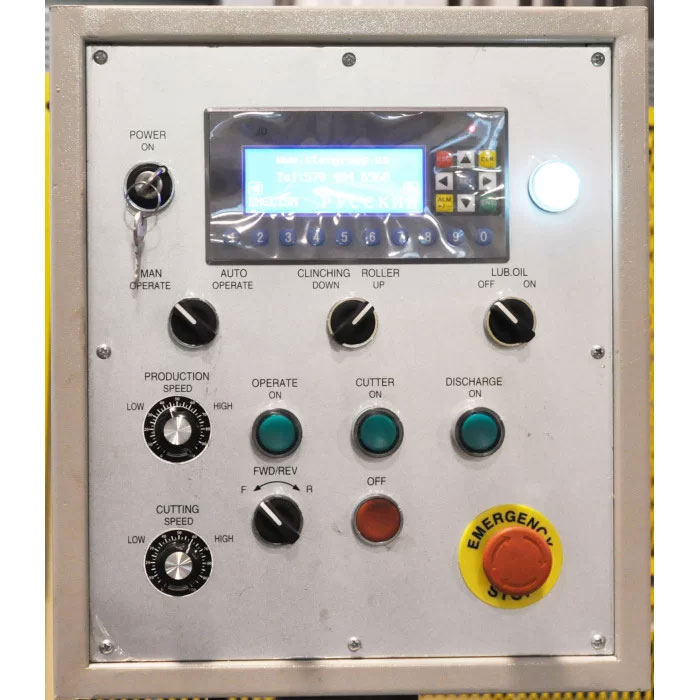

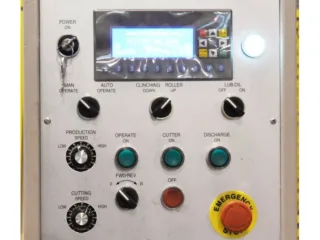

| Control system | PLC |
| Main motor power | 7Hp 3ph 220v |
| Cutting power | 5 Hp 3ph 220v |
| Working pressure | 50~70 psi |
| Size, L х W х H | 2100х2000х2850 |
Among a range of our products, there is an industrial spiral tube former with numerous options. Being intended for several purposes allows cutting various raw materials with various thickness corresponding to the customer’s needs. Automaticcontrolprovidesstable quality, shorter processing time, less consumption of raw material, and as a result cost reduction for a final product. We guarantee its stable run. This model has the design matching requirements of standard projects common with the industrial construction field but also it can be adjusted to the individual demands. Even if you decide on a used spiral tube former, you will get perfect performances!
Strip width 5.4 – 5.5″ Material GI, stainless, copper.
Strip feeding speed
up to 100 feet/min Control system PLC Main motor power
7Hp 3ph 220v
Cutting power 5 Hp 3ph 220v
Working pressure 50~70 psi
Size, L х W х H
2100х2000х2850
What to check on a used spiral tube former
- Confirm the diameter range and which forming heads or tooling sets are included.
- Run a test tube and inspect the lock seam for tightness and the cut end for squareness.
- Check the drive, seam rollers and cut-off for wear and verify voltage and phase.
