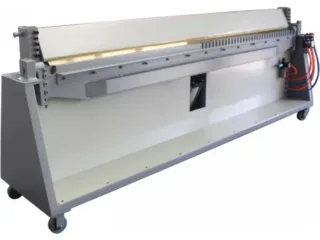

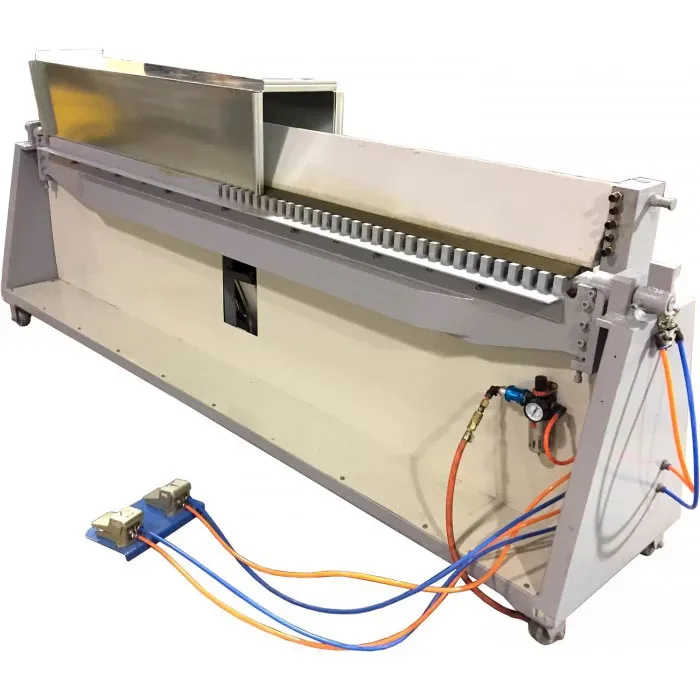

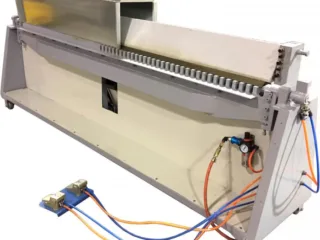

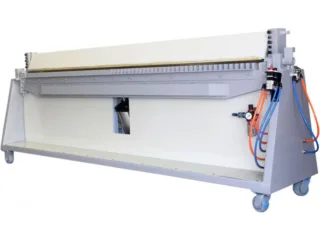

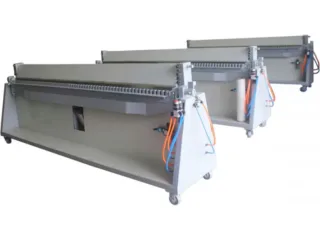

StanGroup TDFC Air Brake
TDFC Air Brake
New UM-4435 Listed October 11, 2024
- New
- Electric
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | N/A |
| Equipment type | Duct Machinery |
| Condition | New |
| Power | Electric |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4435 |
Description

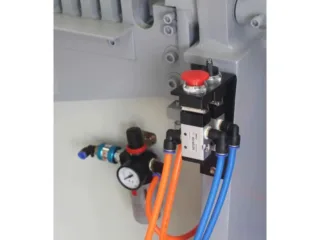

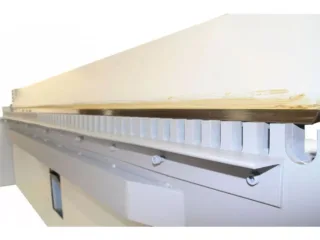

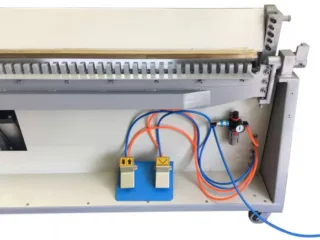

Pneumatic Air Brake designed for bending 0 – 120 degree bends for HVAC rectangular ductwork with integrated or preformed flange. It is a very simple and fast machine to bend straight duct joints and fittings. One operator can easily slide a piece of sheet metal into the machine and set the notches in an instant on the alignment blade located at the bend line. Slips and Drives or straight duct can also be folded over. Operation control is optional with hand or foot switches.
Operates with and other duct flange types and fittings
Forms 18 gauge duct up to 99″ / 60″ long
No segment or setup changeovers
Electrical: No need electrical power
Air compressor needed: 5 cfpm @ 80 psi
Operational width – 8.2′ / 100″ (Short unit 5′ up to order)
Max Gauge – 18
Weight – 1330 lb
What to check on a used duct machine
- Confirm capacity and gauge range and run a test piece through every station you will use.
- Check forming rolls, knives and consumables for wear and price the replacements.
- Verify the control, software support, power requirements and air supply.
