StanGroup Motorized Decoiler DC115M with VFD controls
Motorized Decoiler DC115M with VFD controls
New UM-4417 Listed October 11, 2024
- New
- Manual
Call for price
Ask the seller for current pricing.
Specifications
| Brand | StanGroup |
|---|---|
| Model | DC115M |
| Equipment type | Decoilers |
| Condition | New |
| Power | Manual |
| Shipping | Freight or local pickup |
| Inspection | Ask the seller |
| Stock number | UM-4417 |
Description

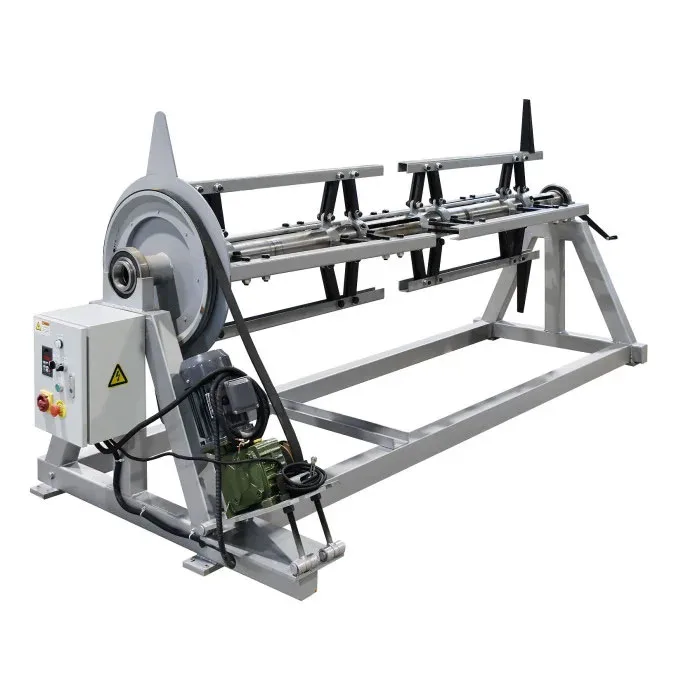

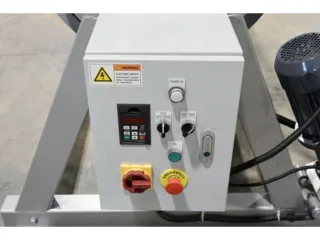

Motorized Decoiler DC115M designed to hold and decoil sheet materials from the coils of paper, metal or plastic. Maximum weight of the coil is up to 10000 lbs (4600 kg). Maximum coil width 115 inches (2.9 m / 9.5 feet). Self Centering coil holder is easy to install and fix. DC115M is equipped with limit switch and VFD controls, variable speed, forward and reverse functions. Constructed from durable steel, the decoiler offers reliability and longevity in operation. Motorized decoilers provide significant advantages over manual decoilers, primarily through increased efficiency and reduced labor requirements.
Standard Features:
• Range of the Inside coil diameter 14″ – 24.5″
• Maximum weight of the coil is up to 10 000 lbs
• Maximum coil width up to 115″ (2.9 m / 9.5 feet)
Size (L/W/H): 132″/ 45″/ 49″
Power Supply: 220V 3Ph 2 Hp
Maximum coil weight: 10 000 lbs
Weight: 1200 lbs
What to check on a used decoiler
- Match the rated coil weight and inside diameter range to the coils you actually buy.
- Check the mandrel expansion, brake and bearings for play, leaks and smooth rotation.
- Confirm the drive type and voltage, and whether a loop or tension control is included.
