Used Decoilers & Uncoilers for Sale

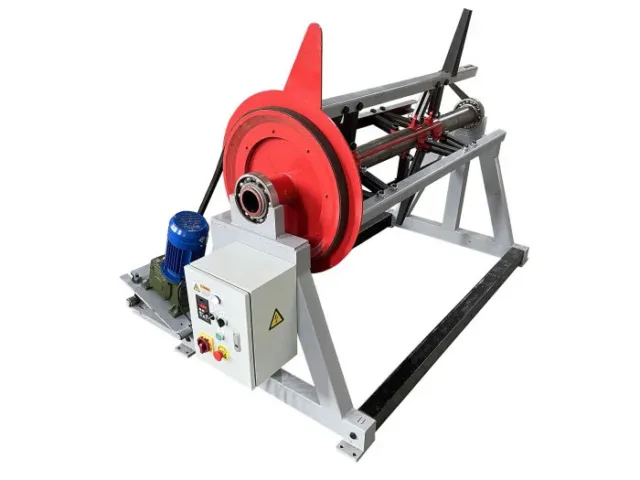

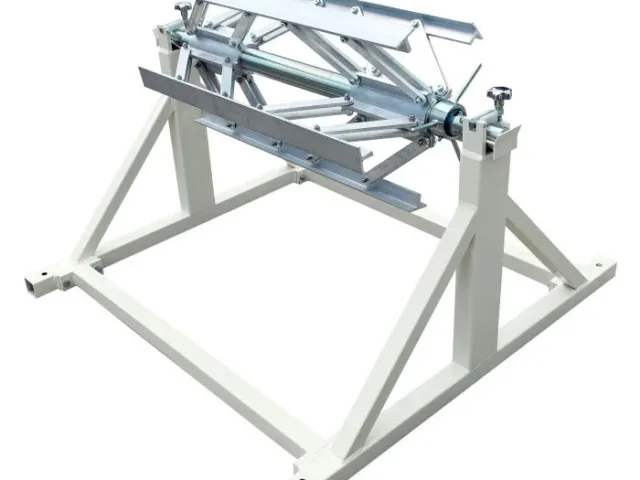

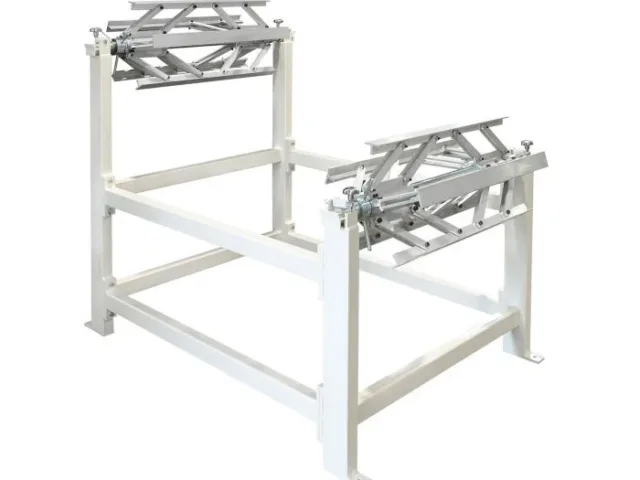

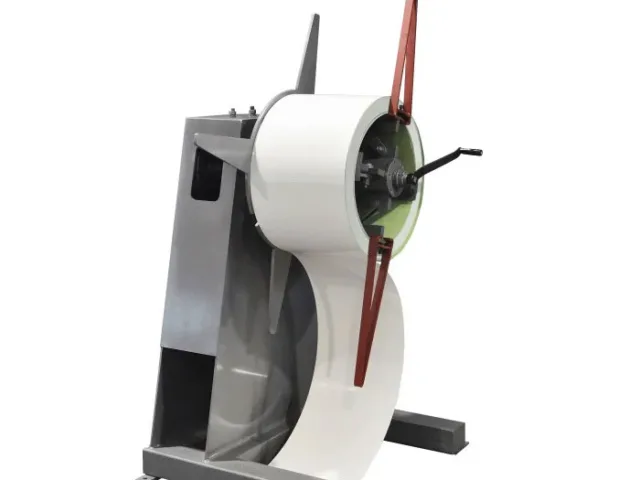

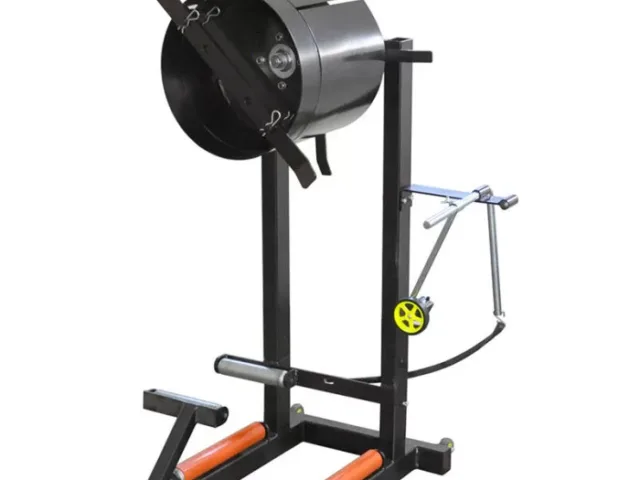

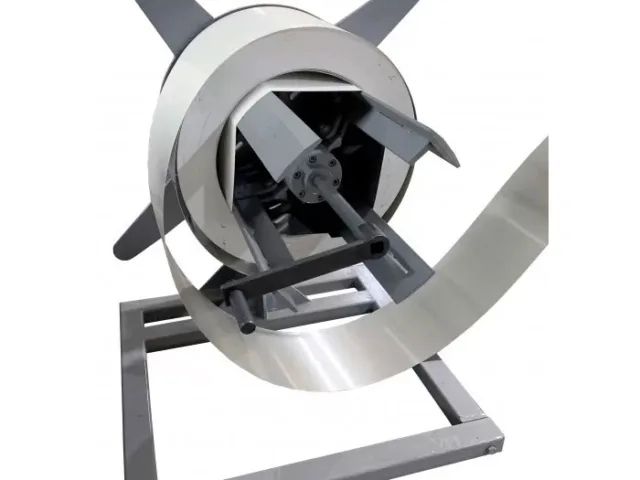

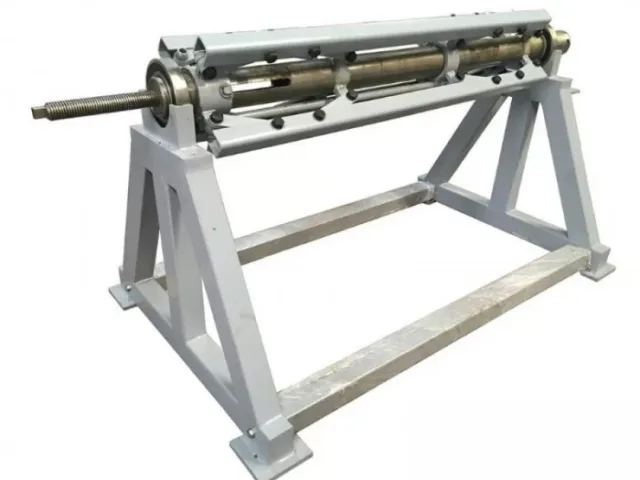

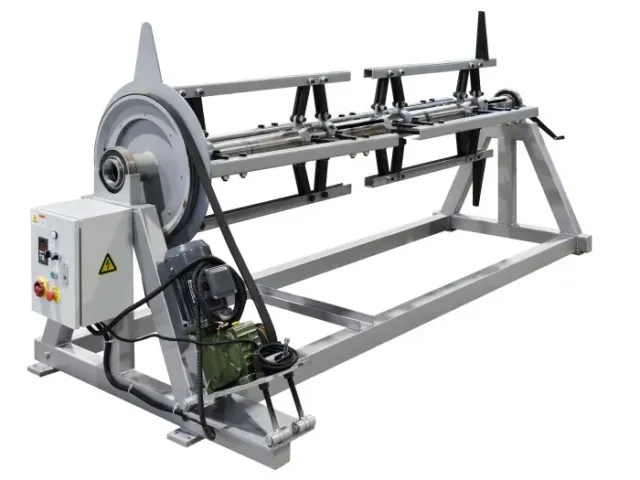

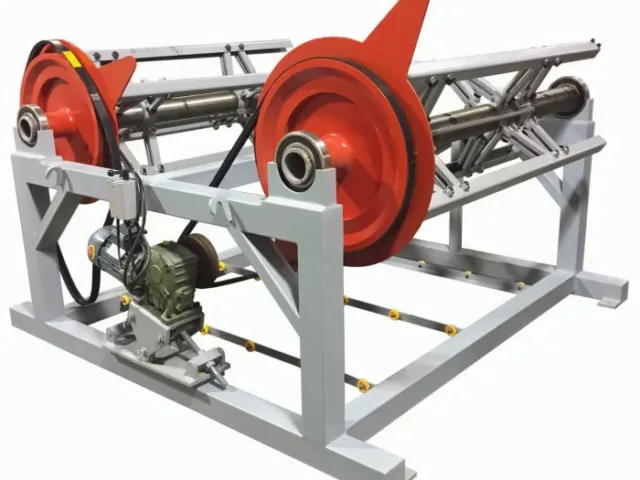

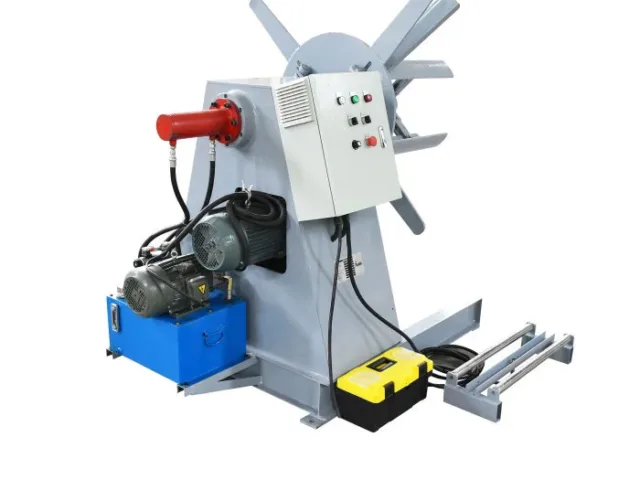

Decoilers, also called uncoilers or coil reels, hold a coil of metal and feed it into a roll former, slitter or cut-to-length line. Options range from simple manual reels and coil cradles to powered, motorized decoilers with expanding mandrels and loop control. Panel shops and roll former owners often buy them to handle bigger coils or to replace a worn reel on an existing line.

What to check before buying used

  • Capacity: confirm maximum coil weight, width and the inside and outside diameters it accepts.
  • Mandrel: check that it expands and locks evenly and is not bent.
  • Brake or drag: look for a working brake to stop overrun when the line stops.
  • Powered units: test the motor, gearbox and any loop sensor or controls.
  • Frame and base: look for cracks, bent legs or repairs.

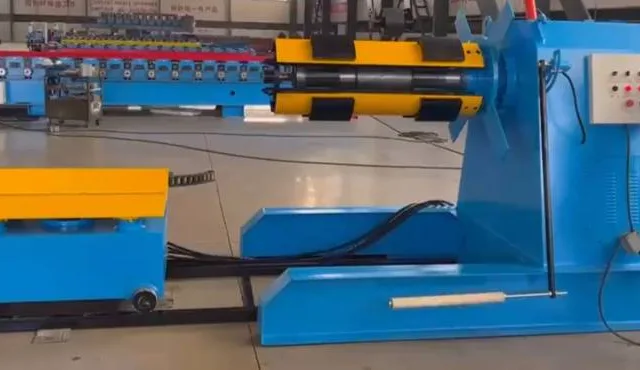

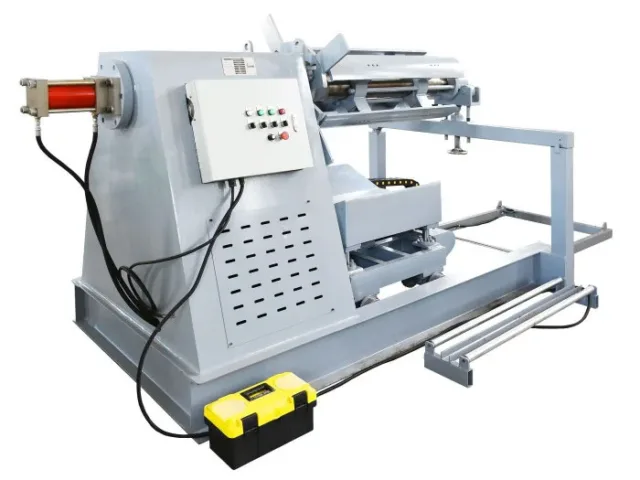

  • Coil car or loading: check how coils are loaded and whether a coil car is included.

Most decoilers are bought to feed roll formers, slitters or cut-to-length lines. Read How to Buy a Used Roll Former for how line components fit together, and Roll Former Maintenance Basics for upkeep.

Questions about Decoilers & Uncoilers

What size decoiler do I need?

Match the decoiler to the heaviest and widest coils you plan to run, with some margin, and to the inside diameter of the coils your supplier ships. Check the feed height lines up with your roll former entry. Ask your coil supplier what sizes they typically deliver before you buy.

Do I need a powered decoiler or is a manual reel enough?

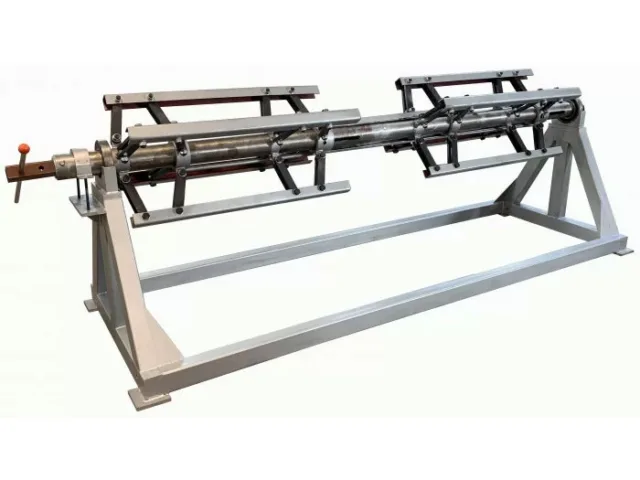

Lighter coils on smaller machines often run fine on a manual reel with a brake. Heavier coils and faster lines usually benefit from a powered decoiler that pays off material smoothly and reduces strain on the roll former. Consider coil weight, line speed and how often you change coils.

What are common problems on used decoilers?

Look for a mandrel that does not expand evenly, a weak or missing brake, worn bearings, gearbox noise or leaks, and frame damage from coils being dropped. On powered units, test the loop control. Many issues are fixable, but price the repairs before you agree on a number.
